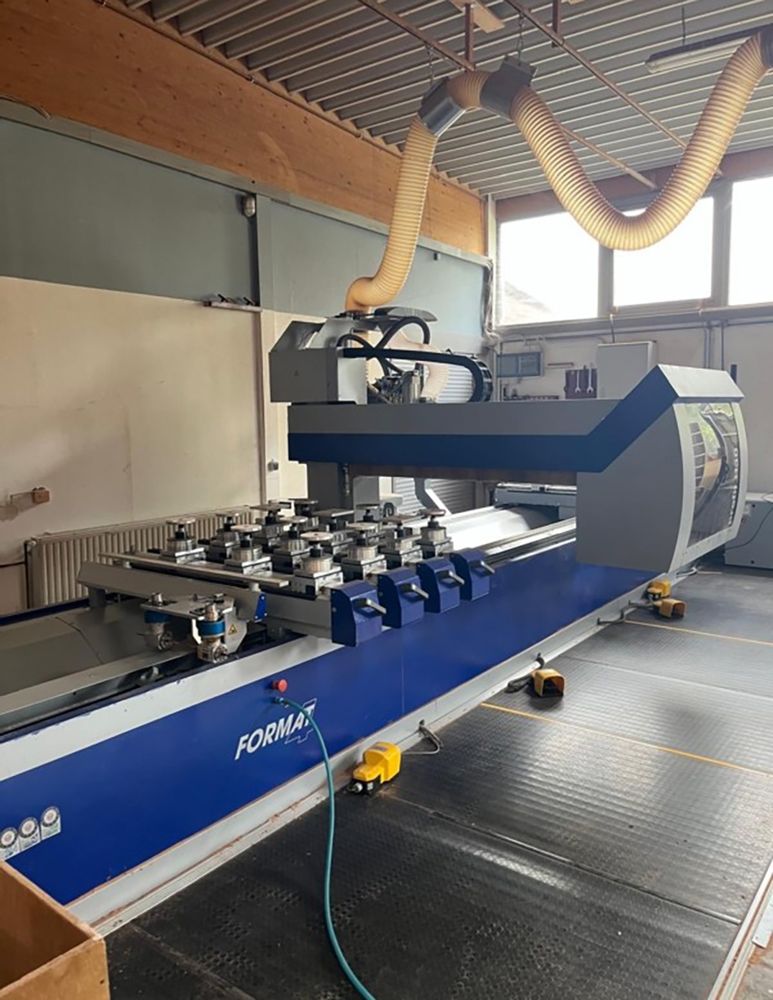

Felder Format 4 profit H30L e-motion 4-axis

CNC machining center
- Includes window tools and existing units
- Includes Felder window design software "Flash Frame" and existing programming
- Machine from a small business, in very good condition, only a few operating hours
Machine can be viewed in operation until the beginning of December 2025!

Technical description:
Working dimensions:
X: 5,130 mm
Y: 1,360 mm
Z: 130 mm

Travel paths:
X: 6,050 mm
Y: 1,790 mm
Z: 280 mm

- 4-axis milling spindle: 18 kW HSK F63 with liquid cooling, 1,000 - 24,000 rpm
- Drilling head DH 20 6H1S: Vertical drilling unit with 14 spindles
(9 spindles in X direction, 5 spindles in Y direction, grooving saw in X direction)
- Disc changer with 24 tool positions.
Max. work diameter 240 mm
max. Tool height 370 mm

- Side pick-up space for 2 tools/units
Max. tool diameter 270 mm
max. Tool height 270 mm

- Mobile pick-up with space for chip deflector slide
- Automatic table: 8 workpiece supports with e-motion position control
- Vacuum pump 90 m³/h
- 6 double x-motion or e-motion insertion aids
- Chip conveyor belt
- Double straight line laser, line laser for round-arch processing
- Handheld terminal for remote control of the axes
- Including all existing solid wood clamps and vacuum suction cups as well as horizontal clamps
- Automatic central lubrication
- CE safety device

- Software:
"Flash Frame", software for window and frame planning
"WOODFLASH"
Program editor with CAD function
3D simulator with collision check for Woodflash on the machine

- Tools:
Wooden windows IV 68, IV 78, IV 92
Front door IV 68, IV 78
Lift-sliding doors IV 68, IV 78, IV 92
Balcony doors IV 68, IV 78
