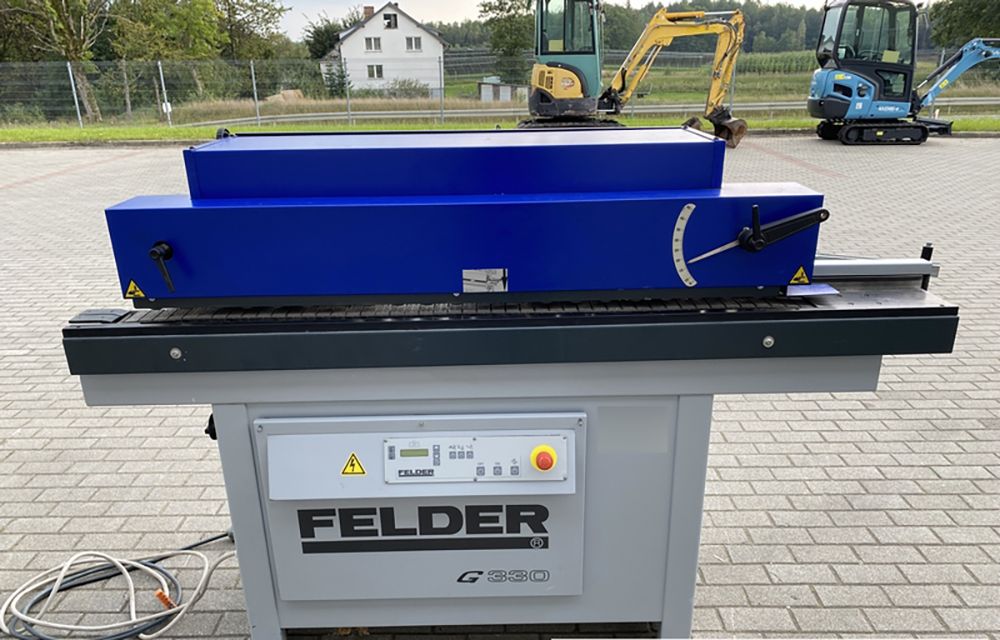

Felder G 330

Edgebander
Electrical Equipment:
- Power supply voltage 3x 400 V
- Power supply frequency 50 Hz

Workpiece dimensions:
- Edge thickness 0.4 - 3.0 mm
- Workpiece thickness 10 - 45 mm
- Minimum workpiece width 70 mm
- Minimum workpiece length 210 mm

Aggregates:
- Roll edge feed from the feed plate
- Feed of edges from 0.4–3 mm thick, manual feeding of individual edging strips
- Guillotine shears for cutting edges from rolls up to 3 mm thick
- Gluing unit for granular hot melt glue, Teflon glue container
- Spring-adjustable pressure unit, 1 straight pressure roller and 1 pressure fixing roller
- Saw blade trimmer, 9,000 rpm, 0.18 kW HW saw blades Z=16, Ø80 mm
- Multifunctional milling unit, 12,000 rpm, 0.22 kW, round milling, straight milling, chamfering
- Rounding scraper unit, mechanically engaged for R=2 mm
- Flat scraper unit, mechanically engaged

Operation:
- Control panel with LCD display and keyboard
- Tool-free Quick unit adjustment system

Feed ;
- Feed system for edge banding on a chain
- Feed speed: 8 m/min
- Extendable support

General data:
- Extraction port: Ø120 mm

Overall dimensions:
- Length: 2000 mm
- Width: 8000 mm
- Height: 1500 mm
- Weight: 360 kg

According to customer request:
- Professional start-up and training Operating range,
- Transport
- The machine handles PVC and ABS edging 0.5 - 3 mm
- Edge banding speed approximately 7 m
- Top and bottom milling with a chamfer or R2 radius.
- Flat scraper
- 1.2 kg Teflon glue tank
- Pre-cut guillotine
- Edge cutting by two saw units.
- Quick machine calibration system by placing a piece of veneer in the appropriate clamp.
