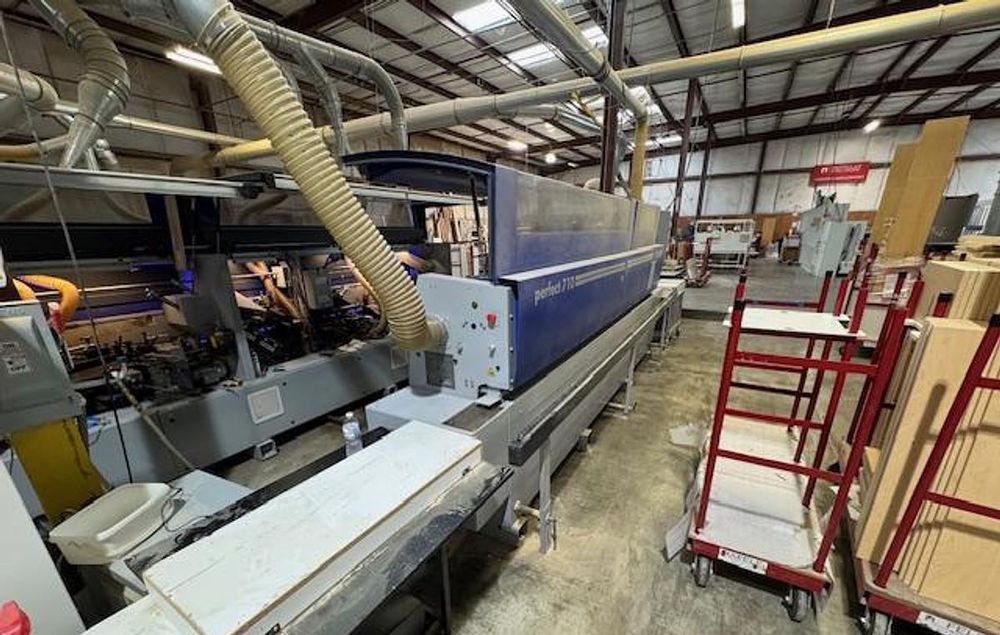

Felder Perfect 710 E-Motion

Control unit with 10.4" touch color screen
Extendable workpiece support motorized - position-controlled pressure beam chain feed with 12m/min feed speed
Roller support plate with ball bearings d = 770 mm
2 motorized joint milling unit / 2 x 1.1 kW
Edge feed for roll and strip material 0.4 - 10 mm (edge detection via infrared sensor)
Teflon-coated gluing unit
Pre-melting unit for EVA glue
Replacement gluing unit for EVA
Replacement gluing unit for PU motorized positioning-controlled pressing unit
2 motorized cross-cut saw unit / 2 x 0.50 kW
2 motorized multifunctional units for radius, flush and chamfer trimming / 2 x 0.75 kW
Corner processing unit
Radius scraper
Surface scraper
2 motorized polishing unit (buffing wheel)
Spraying unit for release agent on the machine infeed side
Spraying unit for cleaning agent in front of the polishing unit
