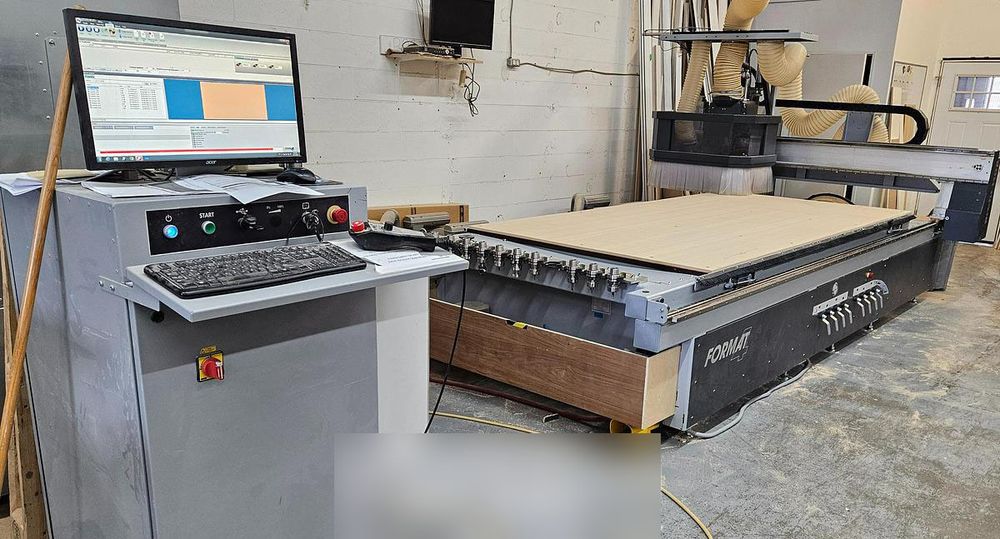

Felder Profit H08

16.31 FLAT TABLE MACHINE (W/ATC)
Specifications:
5' x 10' "MATRIX" Phenolic Flat Table design for "Nested Base" Manufacturing.
Working Capacity"X" Axis is 145" (3,683 mm); "Y" axis is 60.2" (1,530 mm);"Z" axis stroke is 11.8" (300 mm); max. material thickness is 4.3" (110 mm).
Positioning Speed"X" & "Y" Axis at 197 FPM (60 MPM); "Z" axis is 49 FPM (15 MPM).
WorktableThe working area is subdivided into (8) vacuum fields (H08 16.31) to ensure the best holding force for the most varied board sizes.
The vacuum fields are controlled manually by means of hand levers on the front side of the machine.
Prepared for (optional) elevated pods that allow profile & horizontal machining.
Machining(1) 13.4 HP (10 kW) Vertically mounted electrospindle router with: HSK F63 Adaptor;
inverter driven 1,000 - 24,000 RPM with max. torque from 12,000 RPM.(1) 11-Position ATC tool rack mounted at the end of the machine.
Operator & Machine Control PC Based User-Friendly, icon driven control housed on the main machine base + "WOODFLASH" Operating System.
Complete with:(2) 250 cbm/Hr Vacuum pumps; handheld terminal with:
Potentiometer & emergency stop; automatic measuring system of the tool length.
Sound absorbing protective head enclosure with debris curtain around bottom edge.
