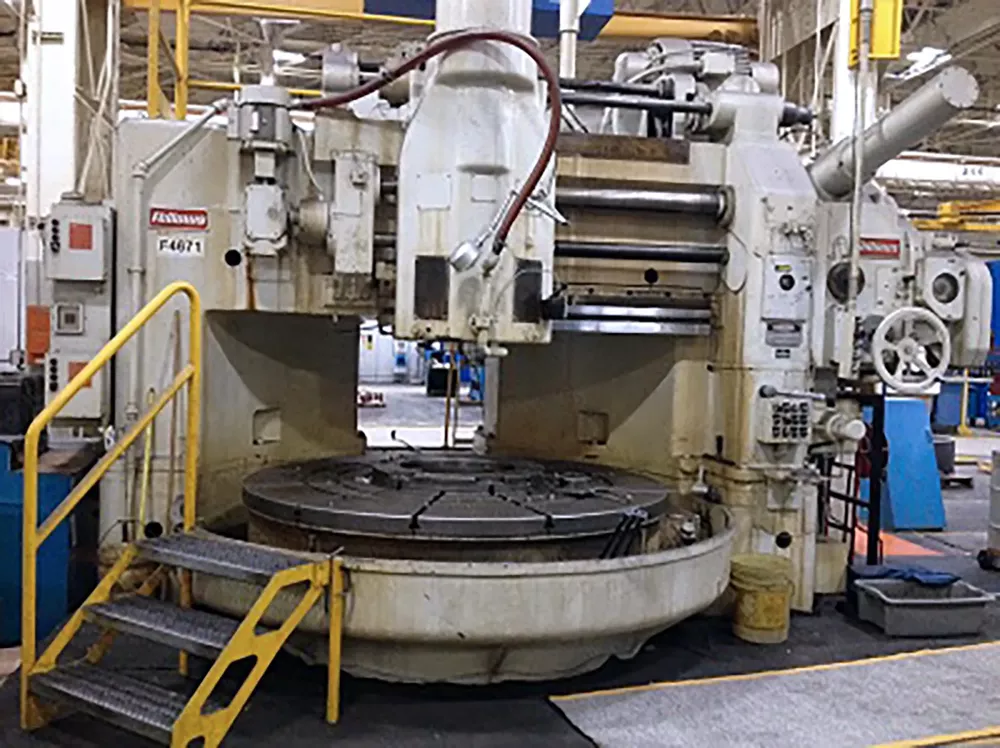

Fellows 70-15 Table diameter: 84"

Maximum table weight: 30,000 lbs
Maximum pitch diameter: 70" internal
Max DP spur: 3
Maximum face width (nominal): 15
Maximum diameter external gear cut (nominal): 70"
Maximum diameter internal gear cut (nominal): 88"
Maximum diameter workpiece accommodated: 104"
Max permissible weight of workpiece & fixture: 36,000 lbs
Work spindle centerline to centerline of cutter spindle: 35"
Fixture clearance height with cutter spindle in upper position: 28"
Maximum diametric pitch (full length teeth): 2 DP
Maximum diametric pitch (stub teeth): 0.75 DP
Maximum diameter pitch (30° P.A. splines): 2–5/5 DP
Diameter of cutter spindle: 6.25"

Machine Equipped With

(No equipment listed in provided text)
