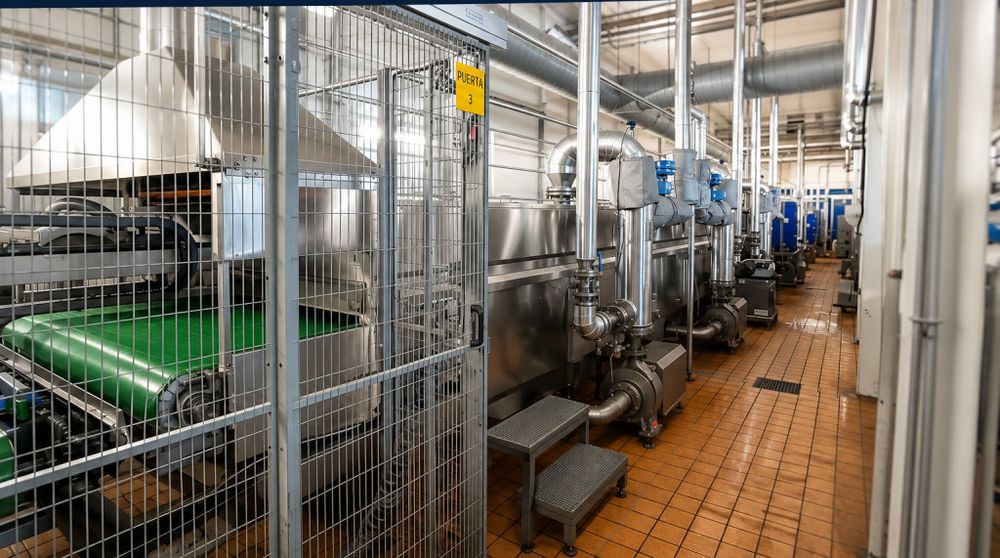

Ferlo CONTINUOUS PASTEURIZER & COOLER

Main Features
• Suitable for glass jars, cans, and various pasteurizable containers
• AISI 304 stainless steel construction
• Double 20 mm eco-friendly thermal insulation
• Hygienic satin-finished surfaces
• INTRALOX S-400 polypropylene modular conveyor belt
• High-temperature side-lock guide system
• Fully automatic operation

Conveyor System
• Slat-chain infeed conveyor
• Variable-speed geared motor drive
• Even product distribution across the full belt width
• Triple synchronized discharge conveyors operating at different speeds
• Automatic container alignment

Pasteurization Section
• 2 plate heat exchangers
• 2 water recirculation pumps (100 m3/h each)
• Modulating steam control valves
• PT-100 temperature probes
• Uniform water distribution through manifolds and perforated trays

Cooling Section
The tunnel consists of three processing zones:
1. Pasteurization zone
2. Pre-cooling zone with tank and pump
3. Final cooling zone using fresh water or cooling tower water
The system includes a central water collection tank equipped with:
• Safety level controls
• Drain valves
• Cleaning traps
• Cooling-zone filtration system

Electrical Control System
• Fully automated process management
• Temperature and conveyor speed control
• Variable Frequency Drive (VFD) for the main motor
• IP65 stainless steel electrical control panel

Dimensions
• Belt width: 2,000 mm
• Pasteurization section length: 13,000 mm
• Cooling section length: 11,000 mm
• Total machine length: 26,000 mm

Key Benefits
• Continuous, fully automated operation
• High thermal efficiency
• Consistent and uniform product treatment
• Robust stainless steel construction
• Low maintenance requirements
• Ideal for canning, preserves, sauces, vegetables, ready meals, and other food processing applications
