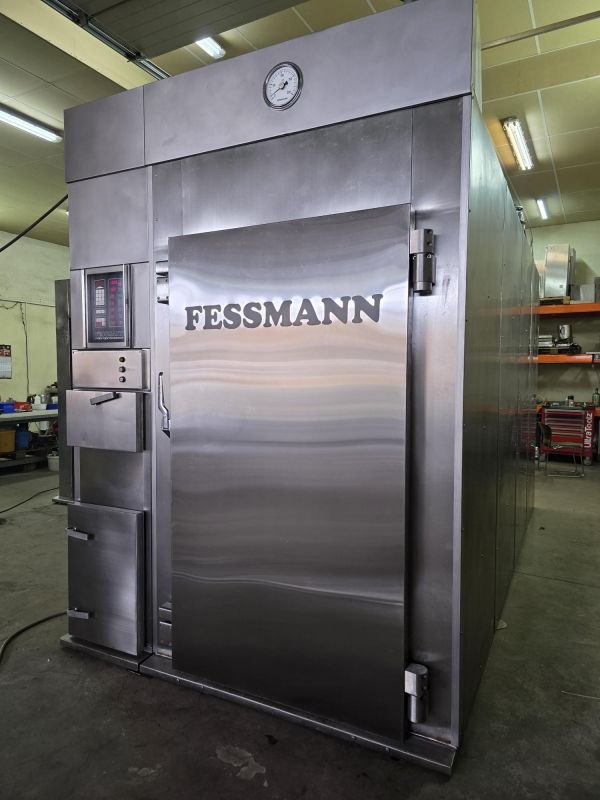

Fessmann T 3000 4W HD

Combined Universal Smokehouse for thermal treatment of food
Single row system
Capacity for 4 smoke trolleys, batch-type, with following maximum outside dimensions of each trolley: (Width x Length x Height in cm): 104 x 102 x 198 (H) cm;
Maximum length of the smoking sticks 100 cm
Control panel: MC 2
Heating: High pressure steam 8 bar, 148 kW;
Motor power: 12,0 kW
Cooking and humidification: Low pressure steam 0,5 bar

Installation dimensions in cm:
Base width: 151
Base depth: 475
Corpus height (without el.motor height and pipes): 250
Minimum height of the workshop: 330
Recommended height of the workshop: 350
Trolley dimensions HxWxD: 198х104х102

Smoke-generator RZ 550
Dimensions and parameters of the smoke-generator:
Width: 55,0 cm
Depth total: 115,0 cm
Height: 159,0 cm
Connected power: 1,8 kW
Weight: 235,0 kg
