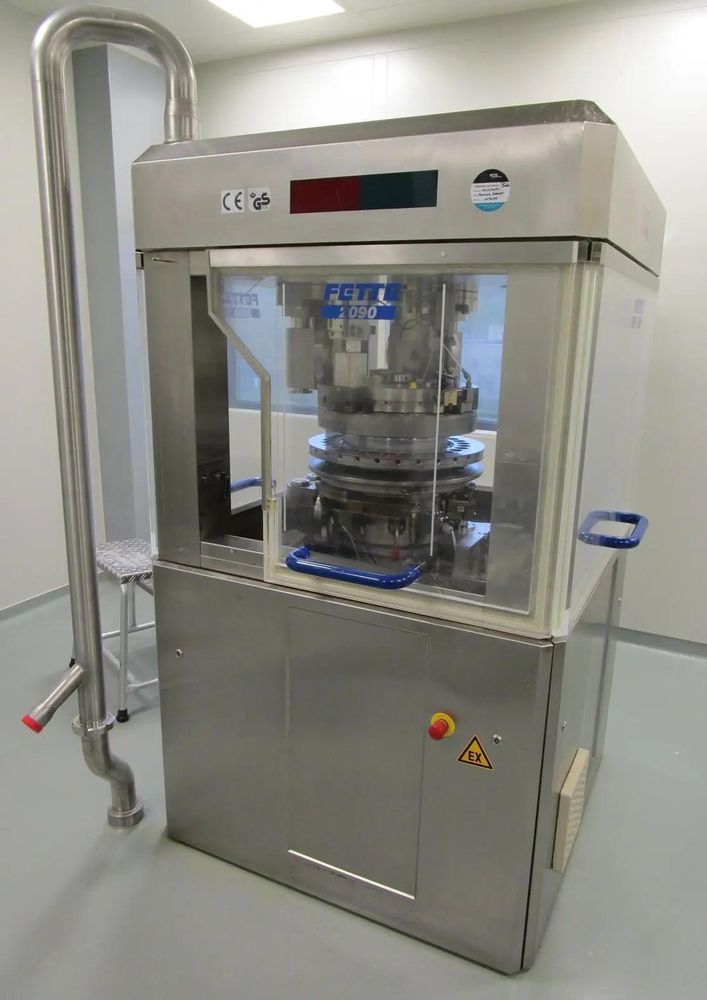

Fette 2090 TABLET PRESS

MACHINE CHARACTERISTICS
double walled Perspex safety guards
the product to be filled is placed in a stainless steel hopper and guided through a Fill-O-Matic motorised powder feeder into the mould cavities, which can be easily dismantled for cleaning
can be connected to an external dust extraction system via connection ports in the upper part of the housing

PRODUCTION CHARACTERISTICS
works with interchangeable moulds
can produce capsule shaped tablets
Production: 216,600 tablets/hour (max; with turret installed)
Tablet dimensions: up to 25 mm Ø (max)
Tablet thickness: 8.5 mm (max)
Number of stations: 29
Compression: 100.0 kN (max)
Pre-compression: 100.0kN (max)
Filling depth: 18.0 mm (max; with suitable cam)
Rotation speed: 15 - 100 rpm
Turret diameter: 410 mm

SIZE
Weight: 3,500 Kg
Footprint: 1,200 x 1,200 x 2,022 mm
