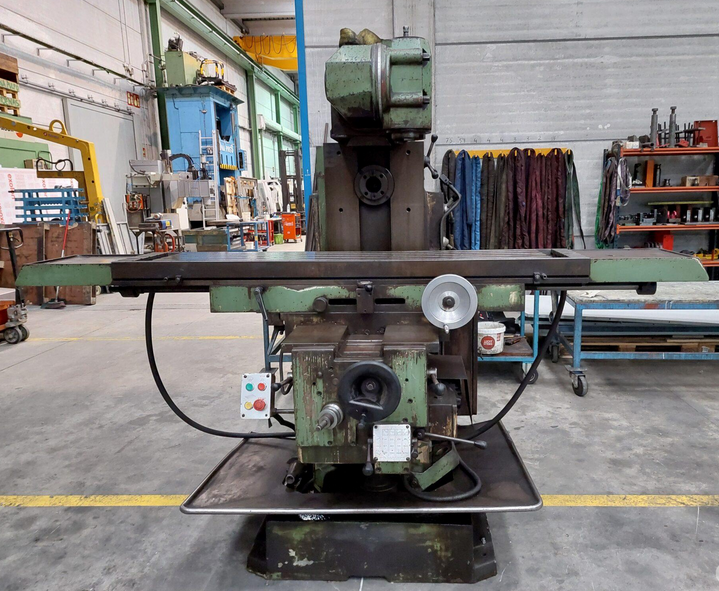

Fexac UH Vertical 1500 rpm

Table size: 1800 x 358 mm
X-axis travel: 1450 mm
Y-axis travel: 350 mm
Z-axis travel: 500 mm
Number of feedrates: 12
Longitudinal and cross feedrate range: 14–670 mm/min
Vertical feedrate range: 5.6–268 mm/min
Longitudinal and transverse rapid traverse: 2500 mm/min
Vertical rapid traverse: 1000 mm/min
Motor power: 15 HP
Spindle taper: ISO 50
Spindle speed range: 16, 34–1500 rpm
Approximate weight: 4600 kg
Machine dimensions: 1950 x 1380 x 1670 mm

Features / Equipment
Motorized ram for vertical work
Main axis
Milling axis
Headstock adjustable at any angle
Engine power 10 HP for ram
Vertical head usable as semi-universal
Vertical head usable as universal
Milling bar
Two steady rests
