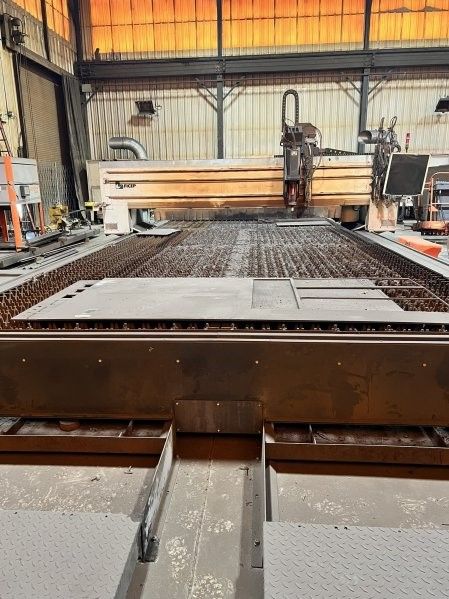

Ficep GEMINI 36 HD CNC CONTROL

Minimum stock plate length: 49-1/4"
Maximum stock plate length: 40 ft
Minimum stock plate width: 31-1/2"
Maximum stock plate width: 141-3/4"
Minimum finished part length: 4"
Minimum finished part width: 4"
Vertical drill heads: 1
Spindles per vertical drill head: 1
Maximum hole diameter drilled/milled: 1-9/16"
Minimum plate thickness: 1/4"
Maximum drilling thickness: 5"
Spindle motor power (S3 rating): 35 HP
Spindle rotation speed: 250 - 6000 RPM
Maximum longitudinal transferring speed: 66 FPM
Cross positioning speed: 105 FPM
Passline height: 25-1/2"
Spindle connection size: ISO 40
Maximum longitudinal milling dimension (U axis): 13-1/2"
Cross positioning: 141.7"
Spindle rotation speed (scribing): 250 - 6000 (7000) RPM
Tool changer positions: 24
Tool changer connection: ISO 40
Maximum cutting thickness (HPR400XD): 2"
Maximum edge start thickness: 3-1/8"
Max bevel cut at 45° (production): 1-1/2"
Max bevel cut at 45° (edge start): 2-1/4"

Monospindle vertical drill head
Feeding system with ball screw and servo motor
Internal coolant system, pneumatically operated
Telecamera with monitor for processing/tool change monitoring
Cross slide (Y axis) with precision gear reduction and rack and pinion
Automatic clamping for 15-3/4" area without gantry movement
Rack and pinion system for milling parallel to main axis
Automatic tool insertion, removal, and selection via CNC
Plasma cutting system with HPR400XD (400 Amps)
Automatic torch height positioning
Cooling system for plasma unit
Automatic gas control panel
Gas types: oxygen, air, nitrogen
Operator panel with cutting parameter display
