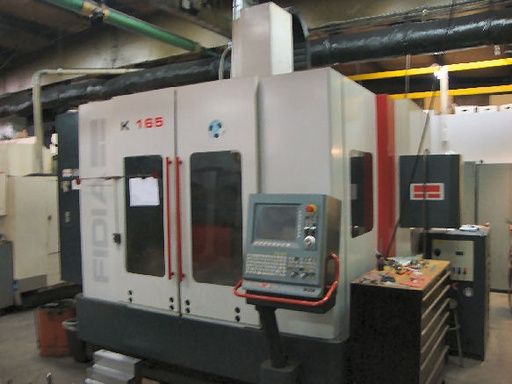

Fidia K165 3 Axis

FIDIA K165
2002

5 axis
X axis travel: 39.370 in / 1,000 mm
Y axis travel: 23.622 in / 600 mm
Z axis travel: 19.685 in / 500 mm
B axis rotation: +25° / -25°
B axis pitch: 5°
C axis rotation: +180° / -177°
C axis pitch: 3°
X and Y axis feed rate: 1,574.8 in/min / 40 m/min
Z axis feed rate: 1,181.1 in/min / 30 m/min
Positioning accuracy: 0.00031 in / 0.008 mm
Maximum acceleration: 393.7 in/s² / 10 m/s²
Work table size: 55.1 in x 32.2 in / 1,400 mm x 820 mm
T-slot spacing: 6.2 in
Maximum table load: 2,000 daN
Automatic tool changer: 24 tool magazine
Tool magazine options: 20, 42 positions
Spindle taper: HSK 50 E
Spindle speed: 30,000 rpm
Spindle power: 20 kW
Control: FIDIA M2
Inspect under power
In excellent condition
