Filling and packaging system for vinegar/oil in plastic bottles

Filling and packaging system for vinegar/oil in plastic bottles:
Equipped for 0.75 liter vinegar bottles,
Capacity: up to 4,000 bottles per hour

Consisting of:
1. Bunker for empty plastic bottles,
approx. 6 m long, capacity: approx. 400-600 containers

2. Kamman bottle sorting system type K23F
The machine ensures that the bottles to be filled are conveyed vertically,
with the mouth facing upwards, from the machine.
Sorting capacity: approx. 3,000-6,000 bottles/h

3. Conveyor belts

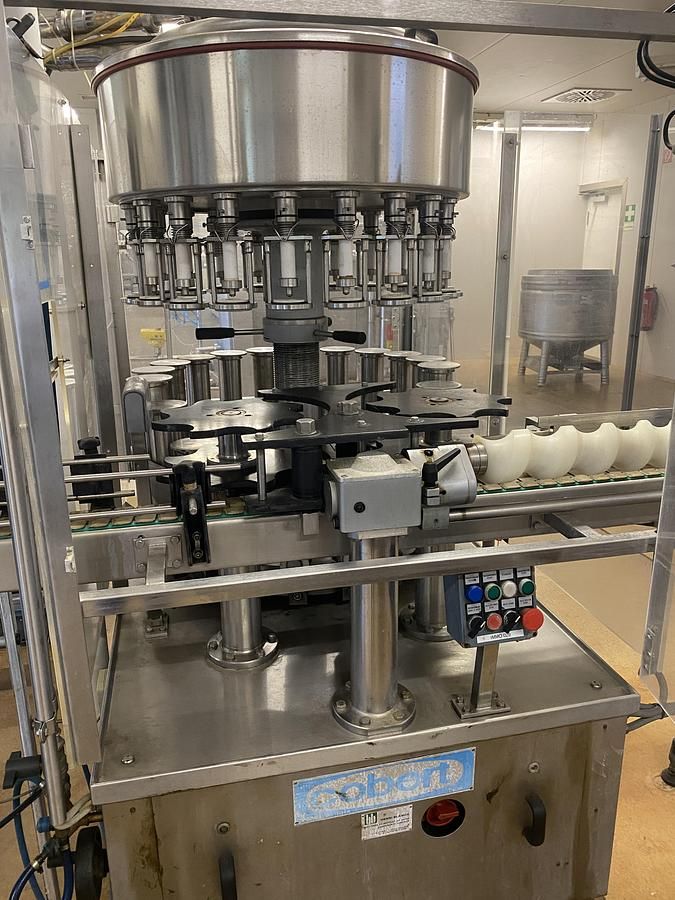

4. Lightweight vacuum filler, brand Cobert type Olimpia20/95
With 20 filling stations
Dimensions: LxWxH: 1,520x1,250x2,330 mm
Possible bottle diameters: 55-120 mm mm
Cost 117,000 DM in 1989

6. Inkjet coder, make REA-JET, built in 2008
For applying the batch number or best-before date code to the filled and sealed bottle

5. Closer for plastic closures, make Zalkin, type CA3/320NG
One closing station
Closures are pressed on
Capacity: 3,000-4,000 closures/h

7. Labeling machine, make Langguth, type E20/L-160
Machine number 020.463 for applying a wrap-around or shield label to cylindrical containers
8. Turntable, diameter: 1,000 mm
9. Carton sealer, make Normpack, type GEMF47, built in 2003 with automatic top lid closing device
Possible Formats:
Length: 150-700 mm
Width: 100-510 mm
Height: 120-510 mm
Performance: up to 20 packages/min.
Sealed with adhesive tape, 50 mm wide, from the top and bottom (2 units)
10. Carton coder, make Imaje, type CrayonPlus, built in 2005
Plate heat exchanger, make Schmidt,
type Sigma16ZAV, built in 1990
For thermal preservation of the vinegar product
Stainless steel storage tank, make Rieger, built in 2004
Upright design
Capacity: 31,200 l

Stainless steel tank, make Behälter KG, built in 2002
Upright design
Capacity: 15,000 l

GRP tank, built in 2004
Upright design, diameter 2,400 mm
Capacity: 25,000 l

The three tanks can only be removed via the roof!
Semi-automatic liquid filler, made by Serac
Used for filling canisters
Filling process triggered by foot pedal

2 pallet trucks
2 pallet trucks with scales
1 telescopic pallet truck

Compressor system consisting of:
CompAir compressor type 2000E
Refrigeration dryer, made by Atlas Copco type FX2
Compressed air storage tank, made by Lohenner, built in 1986
Capacity: 1,000 l
Various heavy-duty shelving units
