FIM PSA 1000/12
EUROPE (Western and Northern)

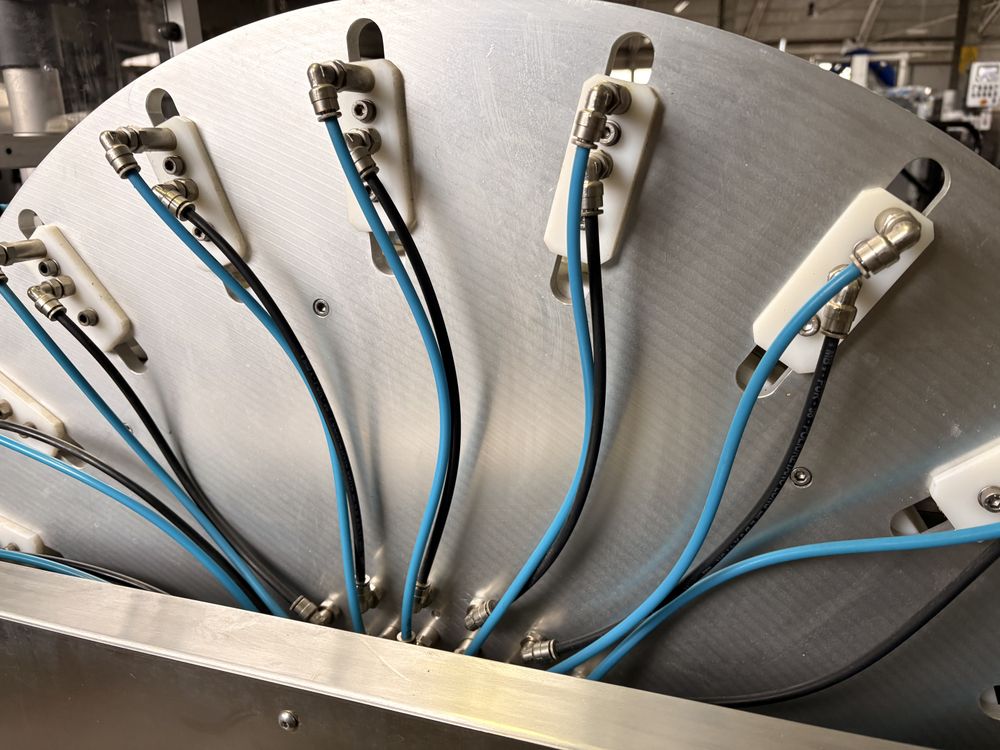

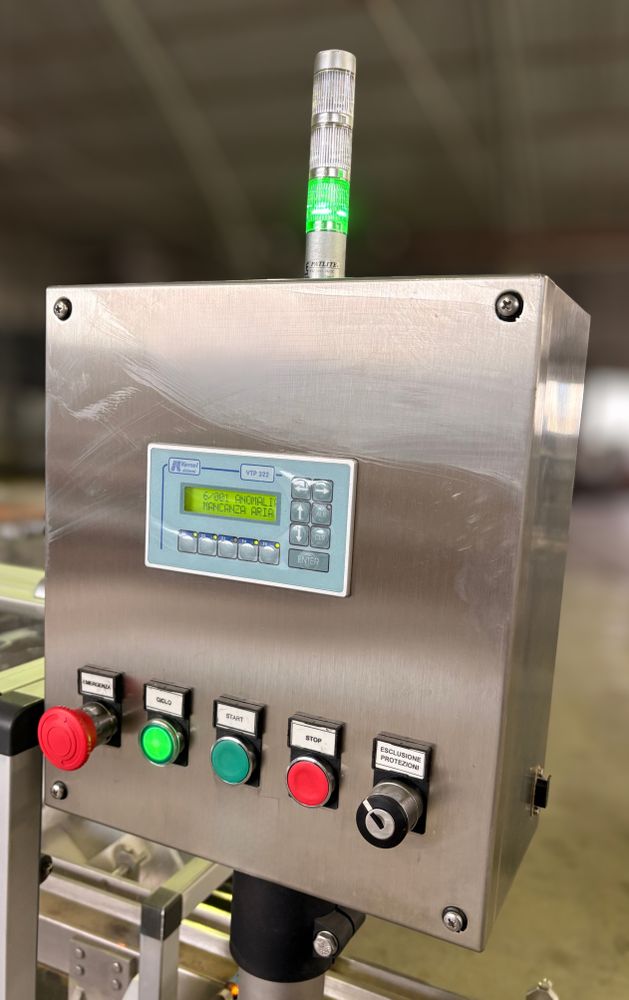

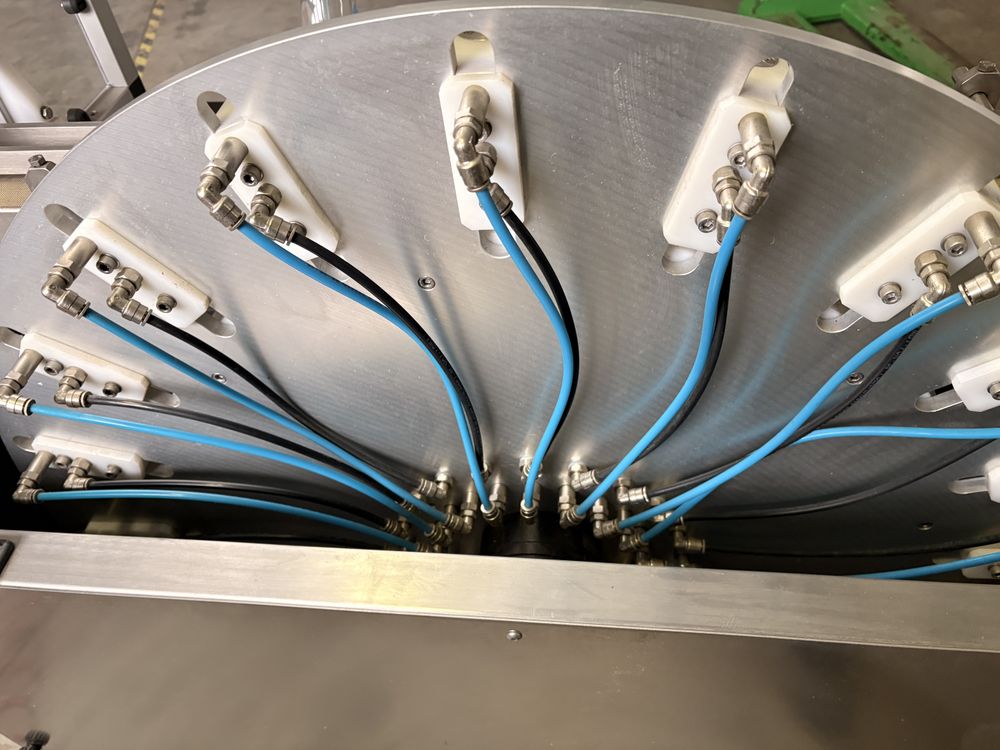

The machine is designed for automated packaging lines, ensuring impeccable internal cleaning of bottles by blowing pressurized air followed by the suction of particles and foreign bodies. The main frame and panels are entirely constructed from AISI 304 stainless steel with a satin finish. The system features a multi-station vertical blowing unit with stainless steel nozzles and polyzene holders tailored to the specific container format. Safety is ensured by an aluminum cabin with transparent polycarbonate doors and safety micro-switches, along with an AISI 304 stainless steel electrical cabinet (IP55 protection) compliant with EC Machinery Directives. BLOWING MACHINE - PHARMA F.I.M. PSA 1000/12
Mostra altre foto (6)
CONTACT US FOR MACHINE INFORMATION

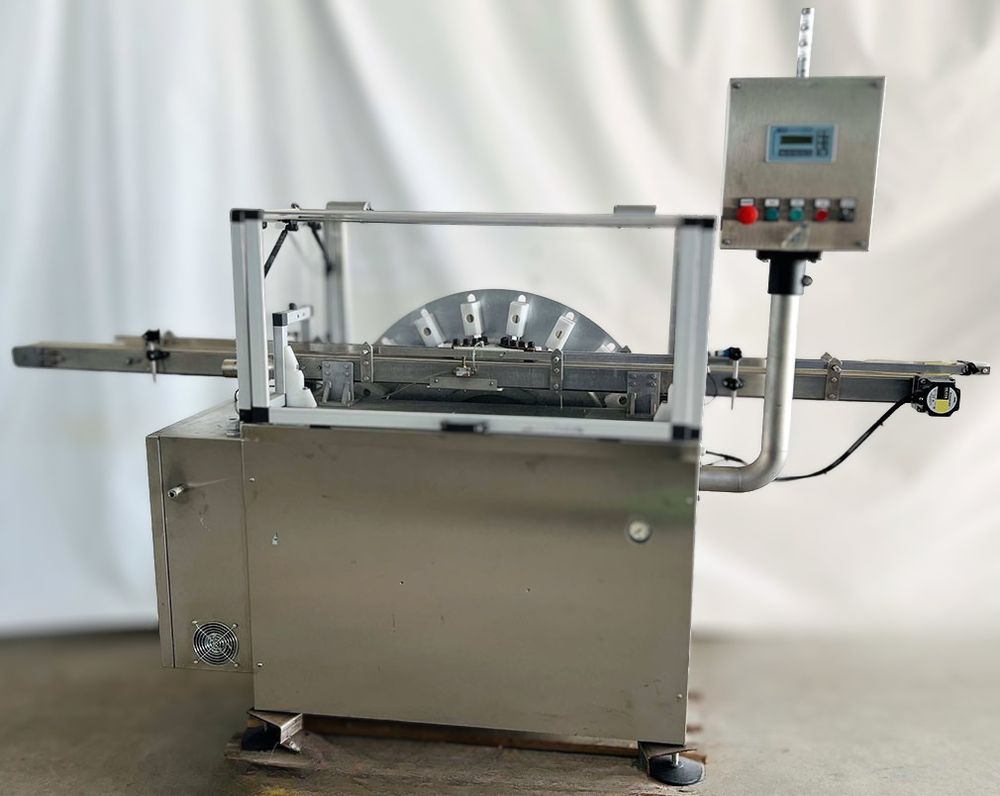

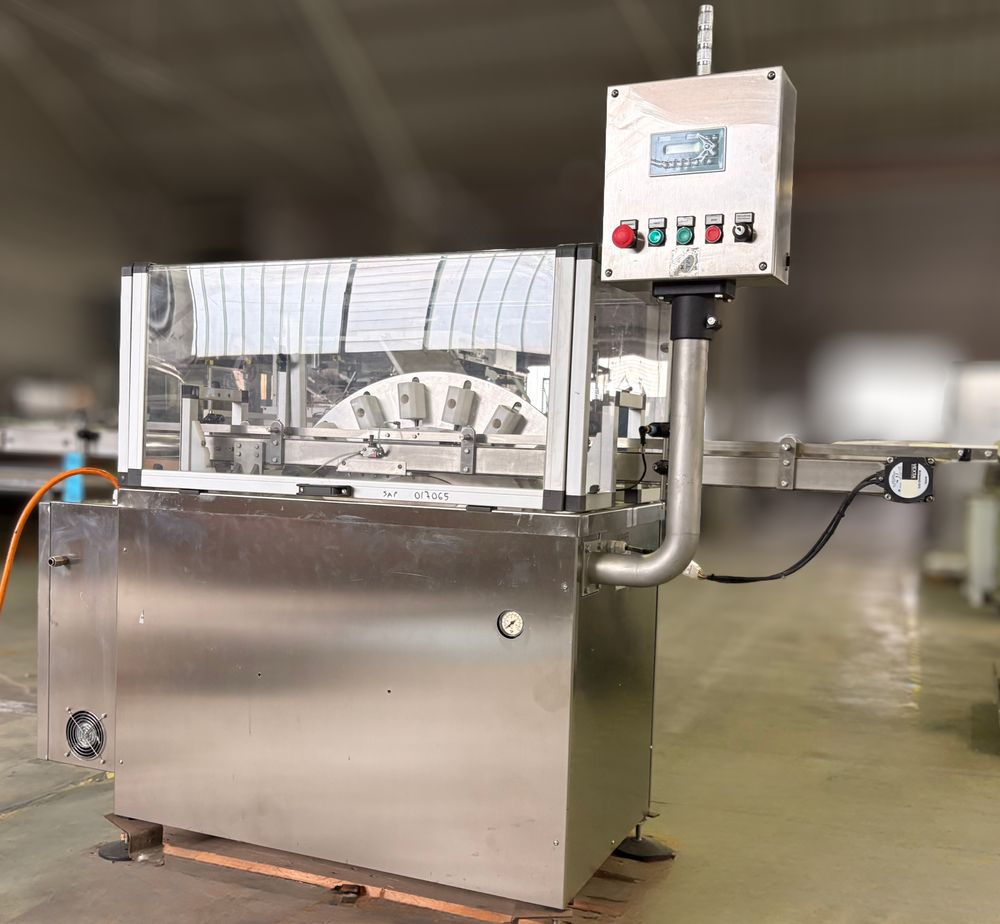

BLOWING MACHINE – PHARMA F.I.M. PSA 1000/12
CODE: PEB-20
YEAR: 2012
CONDITION: USED – GOOD
FIELD OF APPLICATION: PHARMACEUTICAL – COSMETIC – NUTRACEUTICAL
Category: Orienters - Blowers
DETAILS
TYPE: High-output automatic rotary blowing and suction machine for preliminary bottle cleaning.
KEY FEATURES: he machine is designed for automated packaging lines, ensuring impeccable internal cleaning of bottles by blowing pressurized air followed by the suction of particles and foreign bodies. The main frame and panels are entirely constructed from AISI 304 stainless steel with a satin finish. The system features a multi-station vertical blowing unit with stainless steel nozzles and polyzene holders tailored to the specific container format. Safety is ensured by an aluminum cabin with transparent polycarbonate doors and safety micro-switches, along with an AISI 304 stainless steel electrical cabinet (IP55 protection) compliant with EC Machinery Directives.
Main frame, panels, and nozzles in AISI 304 stainless steel.

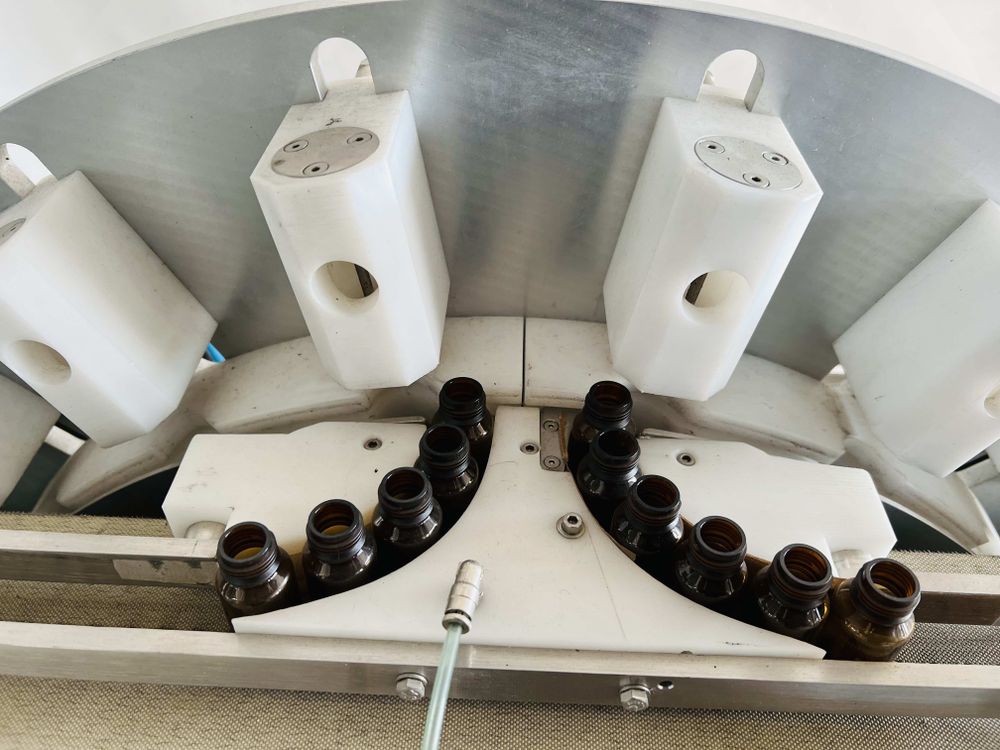

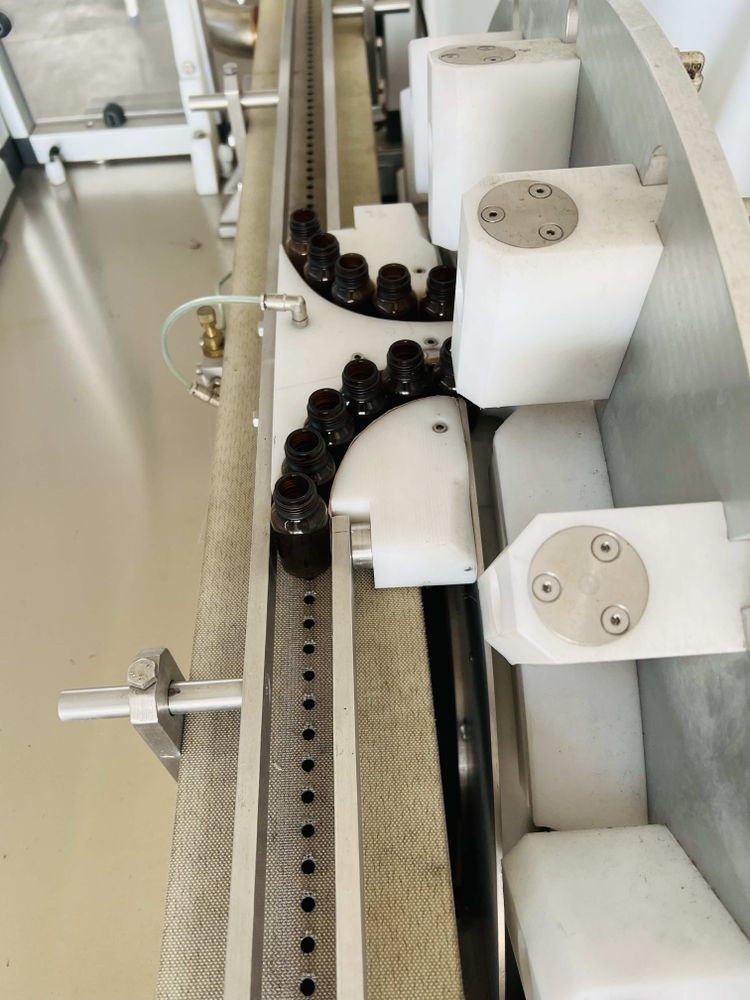

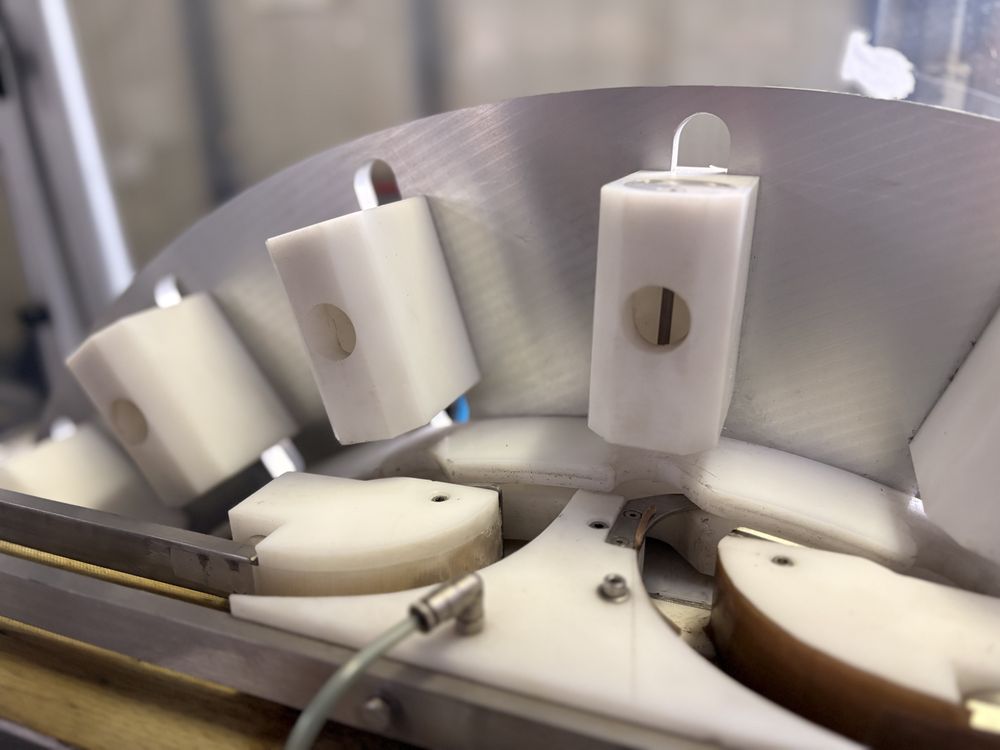

Container holders in polyzene.
Compatibility with various container sizes (jars and bottles) with customizable formats via dedicated segments.
Compressed air filtration system featuring a PALL cartridge filter with a 0.01-micron filtration rating.
Operating power 2.5 kW.
Power supply: 380 V + N + T (50 Hz).
Compressed air consumption 300 Nl/min at 6 bar.
Overall dimensions 2,150 x 1,100 x h 1,700 mm.
Output up to 6,000 – 8,000 bottles/hour.
Equipped for Ø25 mm bottles.
