Fimer 12.1.12.1 sva, Filling Monoblock

Production (hour): 2.500 bph
Direction: Counterclockwise
Model: SDRT 12.1.12.1 SVA
Counterclockwise direction
Suitable For glass bottles
Height adjustment of carousels machines: Electric rinser – Manual filler – Manual capper

RINSER
12 clamps
Fixed nozzle
1 treatment
Type of treatments: Water or air or gas
Vacuum system and inert gas injection before filling

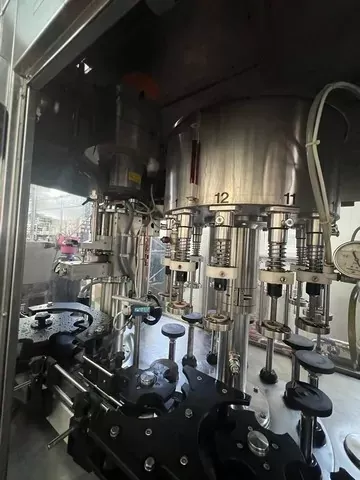

FILLER
12 Valves
Filling type: Gravity and light depression
Valve type: mechanical

CAPPER
Equipped with rotating capping turret
1 head for flat cork
1 head for Stelvin cork
Flat cork stopper measurements:
– Ø 24 mm h 44 mm
– Ø 26 mm h 42 mm
– Ø 24 mm h 38 mm
– Ø 24 mm h 49 mm
Vacuum system before corking with flat cork
Bottle diameter measurements supported: Ø 80 mm; Ø 84 mm; Ø 88 mm; Ø 100 mm
Accident prevention protections
Machine dimensions: 3700 mm x 1500 mm x 2650 mm (h)
