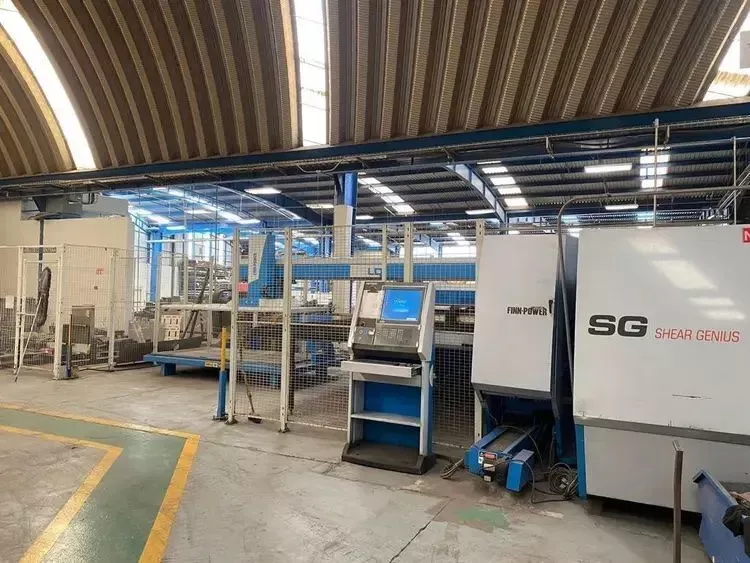

Finn Power SG-6 SHEAR GENIUS Tonnage 30 T

Number of Turret Stations 20
Siemens Sinumerik 840D CNC Control
Program Memory 1.5 MB
X-Axis Travel 3144 mm
Y-Axis Travel 1615 mm
Max Axis Speed X 3460 IPM
Max Axis Speed Y 2362 IPM
Maximum Linear Speed 3937 IPM
Max Sheet Size 60" x 120"
Maximum Work Piece Weight 440 lbs
Maximum Material Thickness 0.3125"
Max Punch Diameter 3.5"
Punching Rate on Center (1") 440 HPM
Integrated Right Angle Shear
Cutting Capacity 31.5" x 60"
Ram Force 300 kN
Punching Stroke Servo Hydraulic
Thick Tool Turret
Number of Tool Stations in Turret 20 pcs
CNC Index Tool Standard Stations 2 pcs (Max 10 pcs)
Tool Rotation Max 166 r/min
Upforming Cylinder Force 250 kN
Upforming Cylinder Stroke Length 250 kN
Right Angle Shear Max Material Thickness Aluminium 5 mm
Right Angle Shear Max Material Thickness Steel Fe52/Fe37 4 mm
Right Angle Shear Min Material Thickness 0.5 mm
Full Stroke Shear Max X x Y 1000 x 1528 mm
X-Blade 1005 mm
Y-Blade 1532 mm
Blade Clearance Setting Automatic (ACS)
Max Sheet Weight 200 kg
Pneumatic Clamps 3 pcs (Optional 4 pcs)
Max Sheet Size X x Y (SG6) 3074 mm x 1524 mm
Positioning Speed Max 150 m/min
Hole Spacing 1 mm 1100 /min
Hole Spacing 25 mm 500 /min
Hole Spacing 250 mm 200 /min
Punching Accuracy Hole Location Deviation Max 0.1 mm
Hole-To-Hole Distance Deviation Max ±0.05 mm
Angular Deviation CNC Index Tool Max ±0.1°
Positional Deviation P (X/Y Axes) 0.08 mm
Positional Scatter P (X/Y Axes) 0.04 mm
Turret Rotation 30 R/min
Tool Change Time 1–3 s
Work Chute Max Part Size 500 mm x 500 mm
Ethernet Connection 100 Mbps
Machine Weight 26,000 kg
Hydraulic Unit Drained Weight 600 kg
Oil Tank Volume 200 L
Oil Cooler Max Cooling Capacity 0.64 kW/°C
Oil Cooler Air Flow 2.1 m
