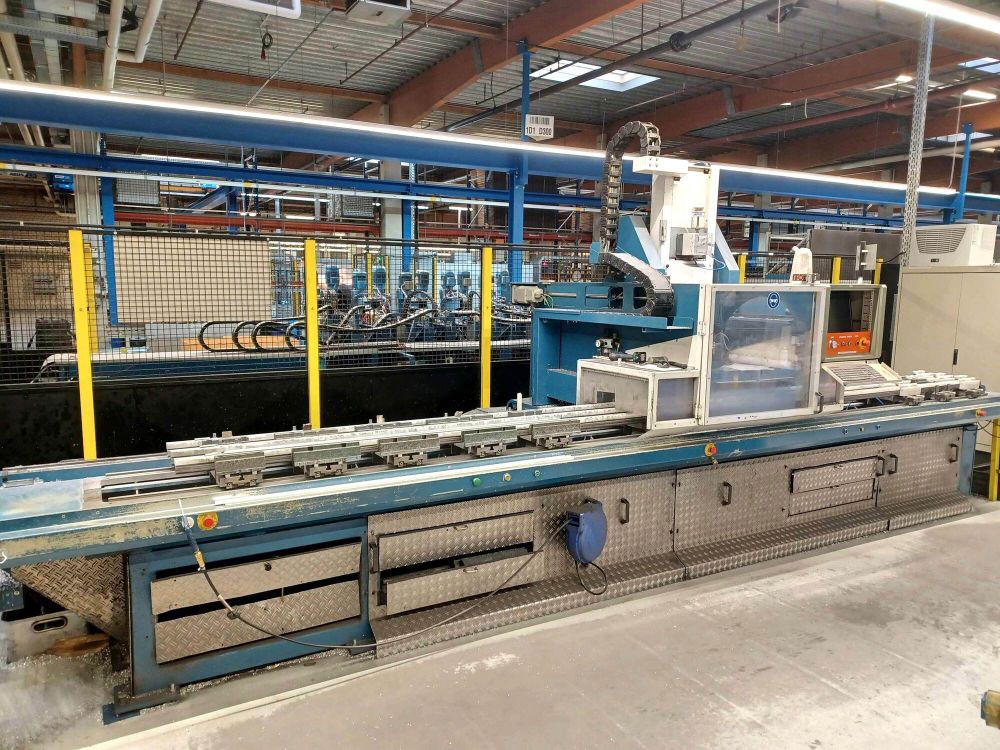

Fischer EBZ 62/70

CNC Aluminum Milling Machine HEFI Fischer
Up to three profiles can be clamped and machined side by side.
Machining from the top only.
Used for machining thin-walled aluminum profiles.
Includes milling cutters and tool holders.

Machining dimensions:
Length 6000 mm x Width 200 mm x Height 200 mm
Travels: X 7000 mm x Y 1000 mm x Z 370 mm
Spindle: 7 kW, 22,000 rpm

Spindle taper: SK 30
Rapid traverse (X-Y-Z): 35/26/18 m/min
Power consumption: 18 kVA

Tool changer: SK 30 spindle taper
Tool positions: 5
Maximum tool diameter: 35 mm (1 special tool max. 150 mm)
Tool length (incl. tool holder): 125 mm

Control: Graphical user interface, PC control, 2 Pentium PCs, hard drives

Machine dimensions:
Overall length (machining length): 6000 mm + 1800 mm = 7800 mm
Overall depth: 2400 mm
Total weight: approx. 8000 kg

Includes milling cutters and tool holders
The machine can be inspected in operation.
