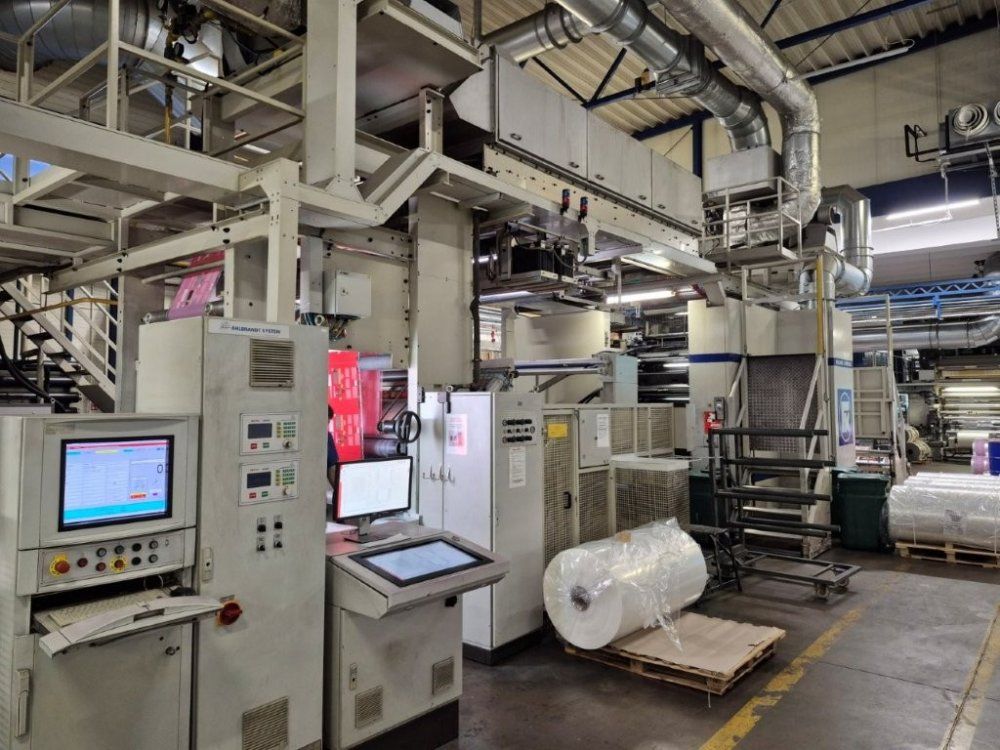

Fischer & Krecke 16S-10k 10 1050 mm

Number of colors 10
Overhaul/renovation : In 2022: New Main OCS Computer New Valve Island for CI New Valve Island for Winder & Rewinder Spare Rexroth motors for: Printing shaft Anilox roller Two carbon printing shafts included
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1100
Print width (mm) 1050
Min print repeat (mm) 350
Max print repeat (mm) 750
Unwinder type Turret non stop
Max reel diameter unwinder (mm) 1000
Rewinder type Double Unwinding Shaft with Dancing Rollers
Max reel diameter rewinder (mm) 1000
Drying 2 zones , 4 fans , final tunnel 4 mt , 2 Gas burners
Videocamera BST IPQ Print Control / View System Latest-generation inspection & print monitoring technology. (installed in 2023)
Web guides Yes, before CI and before winder
Inking system Closed chamber doctor blades and pneumatic ink pumps
Anilox : 4x 470 L/cm-Vol.3,5 4x 420 L/cm-Vol. 4 4x 340 L/cm-Vol.4,5 2x 340L/cm -Vol.5,5 3x 330 L/cm-Vol.5,5
2x 280 L/cm-Vol. 5,5 1x 280 L/cm-Vol. 8 2x 220 L/cm-Vol. 7 1x 195 L/cm-Vol. 8,5 1x 180 L/cm-Vol. 9 1x 160 L/cm-Vol.
14 1x 160 L/cm-Vol. 10 1x 100 L/cm-Vol. 14 2x 80 L/cm-Vol. 20
Print Sleeves : 10x360mm, 10x380mm, 10x390mm, 18x 400mm, 18x 420mm, 10x 430mm, 20x 440mm, 10x450mm,
10x460mm, 10x470mm, 10x480mm, 10x 500mm, 10x 510mm, 10x 520mm, 10x 530mm, 10x 540mm, 10x560mm,
10x580mm, 10x600m, 10x 610mm, 10x 620mm, 10x 630mm, 10x640mm, 10x 650mm, 10x 660mm
Note Dancing rollers system
