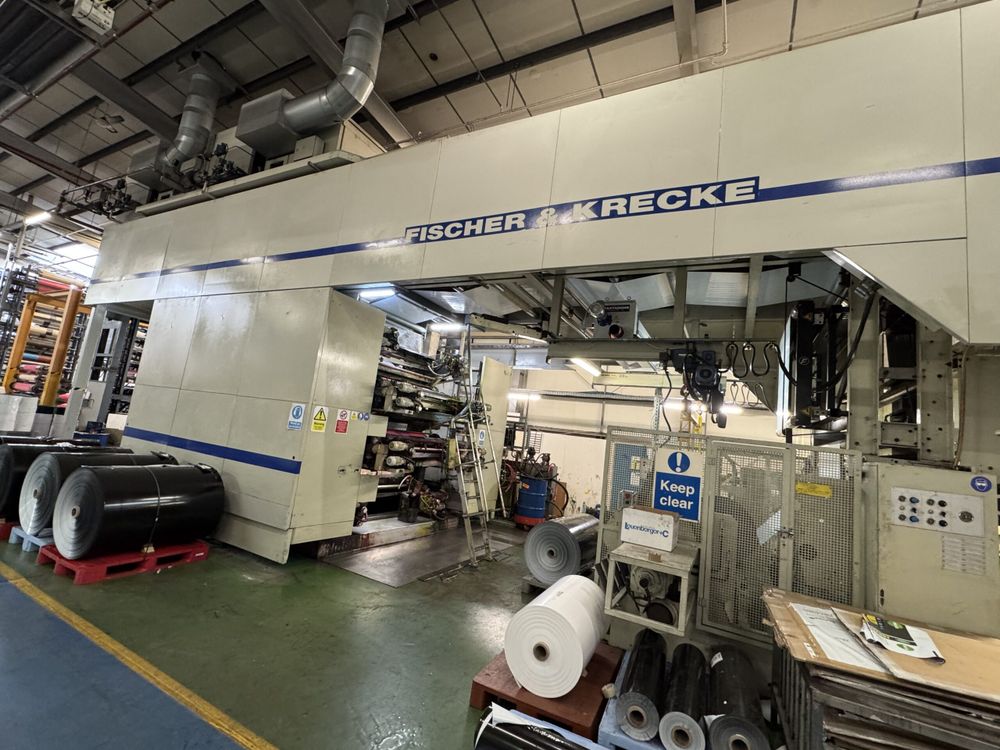

Fischer & Krecke 34 DF/8 8 1450mm

1.04 Colors (nr) and Type 8 Colors
1.05 Gearless Yes
1.06 Print width (mm) 1400 mm
1.07 Material passage (mm) 1450 mm
1.08 Print development min. – max. (mm) 350 - 1100 mm
1.09 Mechanical speed (m/min) 350
1.10 Material type (kg) :
Paper and plastic films
Electrical power: 3 x 400 V, 50 Hz.
Air pressure: 6 bar
1.13 Inks Solvent based and water based
1.14 Doctor blade groups: quantity N° 10
1.15 Washing of printing units Yes
1.16 Type of unwinder Automatic, 76 and 152 mm expandable shafts
1.17 Max. diameter on unwinder (mm) 1000
1.18 Winder type Automatic, 76 and 152 mm expandable shafts
1.19 Max. diameter on winder (mm) 1000
1.20 Heating Gas drying
1.21 Video camera Yes, BST Eltromat
1.22 Availability Immediate
1.23 Further information :
N° 140 sleeves
N° 16 anilox
