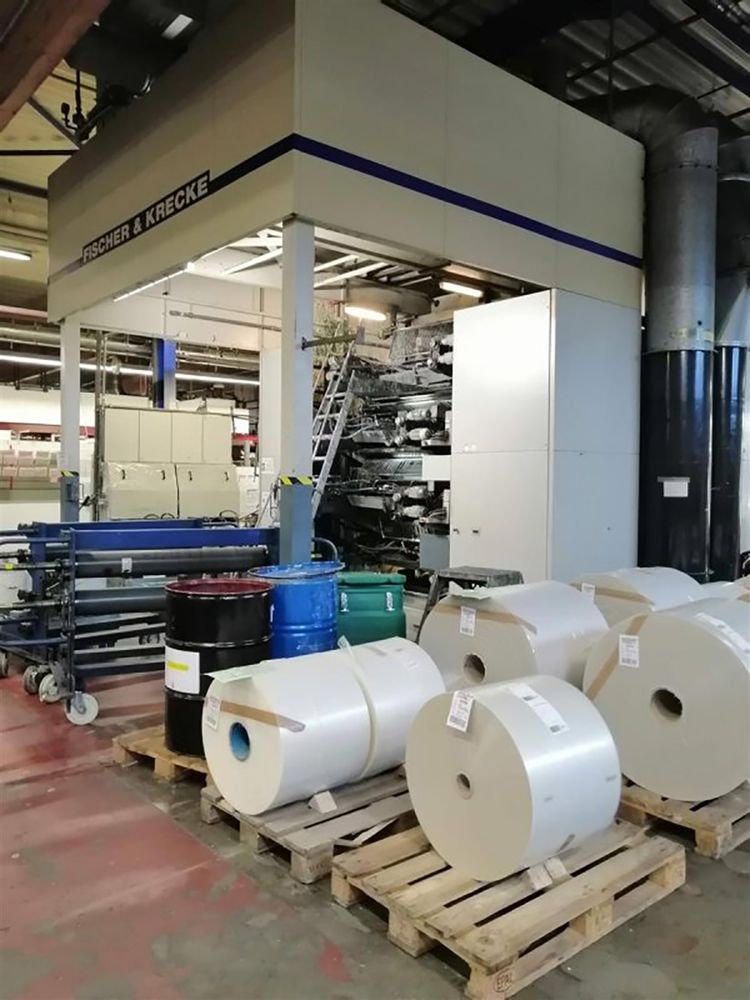

Fischer & Krecke 34DF/8 CNC 8 1300 mm

Number of colors 8
Print possibilityes 8+0
Gearless No
Fast sleeve change No
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1320
Print width (mm) 1300
Min print repeat (mm) 380
Max print repeat (mm) 1100
Unwinder type Turret FLYING SPLICE
Max reel diameter unwinder (mm) 1000
Rewinder type Turret FLYING SPLICE
Max reel diameter rewinder (mm) 1000
Drying 2 zones , 4 fans 2 gas burners
Videocamera Yes
Corona treatment NO
Web guides FIFE
Vyscosity control Yes
Washing system yes, F&K
Inking system Ceramic anilox + closed chambered doctor blade
Anilox 1x 80 L/cm, 2x 200 L/cm, 2x 120 L/cm, 4x 200 L/cm , 2x 320 L/cm , 3x 400 L/cm
Print Sleeves : 200 sleeves repeat between 390 mm and 1090 mm
( 8 for each following repeat x 390 , 400, 410 , 420 , 430 , 450 , 480 , 510 , 530 , 540 , 550, 630 , 660 , 670, 740 ,
780 , 800 , 850 , 880 , 930 , 990 , 1030 , 1050 , 1090 + 8 twinlock 740 mm + 8 twinlock 1030
Print cylinders : Mandrels for sleeve s 6 x360 , 6x 400 , 6x 420 , 8 x 460 , 8x 530 , 6x 560 , 12 x 620 , 8x 780 , 8x 850 , 15 x 990 mm.
Printing cylinders 8x 380 , 8x 390 , 12x 400 , 8x410 , 8x 450 , 6x 460 , 7x 470 , 4x 490 , 12x 500 , 8x 510 ,
12x 530 , 8x 540 twinlock , 6x 560 , 8x 570 , 8x 580 , 8x 590 , 12x620 , 9x 640 , 12x 660 , 6x 670 , 6x 730 ,
Overall sizes: L=17m, W=5m, H=6m
Mech speed: 350m/min, working speed: up to 300m/min
Diameter of central drum: 2280mm
