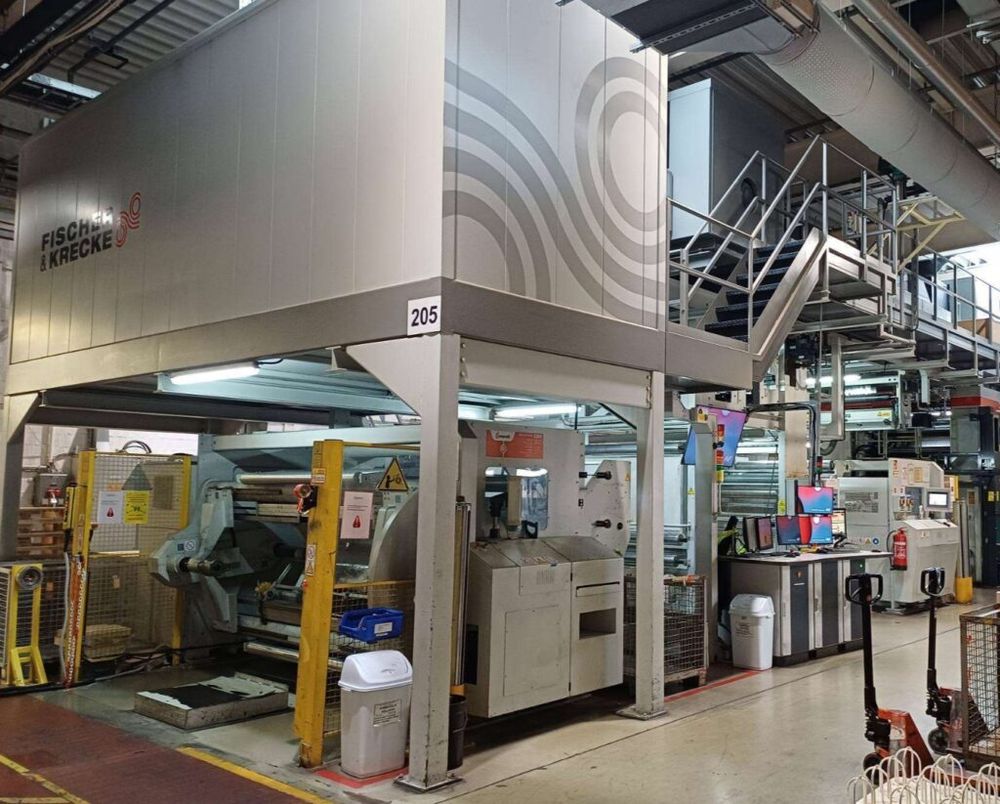

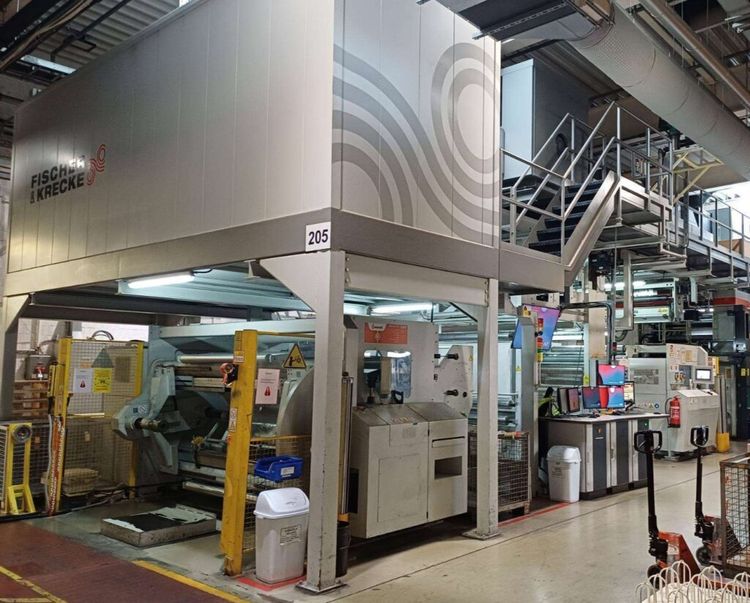

Fischer & Krecke (F&K) FP16-S10 10 450 mm

Condition : Good
Machine Type: Central Impression (CI) Flexographic Printing Press
Gearless Drive: Yes
Number of Colors: 10
Ink Type: Solvent-Based
Machine Status: In Production

Technical Specifications:
Maximum Web Width: 1,500 mm
Maximum Printing Width: 1,450 mm
Printing Repeat: 390 – 1,050 mm
Maximum Mechanical Speed: 500 m/min

Suitable Materials:
The machine is designed for printing on: PE, OPP, CPP, PA, PET and Paper

Material Thickness:
Minimum: 12 micron
Maximum: 200 micron

Unwinder:
Automatic Turret Unwind
Shafted & Shaftless Operation
Maximum Reel Diameter: 1,000 mm

Rewinder:
Automatic Turret Rewind
Shafted & Shaftless Operation
Maximum Reel Diameter: 1,000 mm
2 Air Shafts (Ø150 mm)

Drying System: Thermic Oil Drying System

Machine Equipment:
Automatic Web Guide
Video Inspection Camera
AFS 6 kW Corona Treater
Automatic Cleaning System
New Celio Viscosity Control (3 Solvents)
Medium Cut Inline Slitting
Mounting Device Included

Included Accessories:
40 Anilox Rollers
835 Printing Sleeves
76 Intermediate Sleeves (7 Different Sizes)
Complete Set of Sleeves & Anilox Rollers
Basic Trolleys
High-Pressure CO2 System
Basic Spare Parts
Machine Manuals

Printing Tool Inventory:
Printing Sleeves:
Total Quantity: 835 pcs
Various Repeat Sizes Available

Anilox Rollers:
Total Quantity: 40 pcs
Multiple Screen Counts & Cell Volumes

Adapters: 380 mm, 440 mm, 490 mm, 530 mm, 590 mm, 660 mm, 720 mm, 790 mm
Doctor Blade Chambers: 20 pcs

Machine Highlights:
10-Color Gearless CI Flexographic Printing Press
Production Speed up to 500 m/min
Solvent-Based Printing
Automatic Turret Unwind & Rewind
Advanced Corona Treatment System
Automatic Cleaning System
Camera Inspection System
Web Slitting Before Rewinder for Separate Ups
Large Package of Sleeves & Anilox Rollers Included
Available for Inspection in Production
