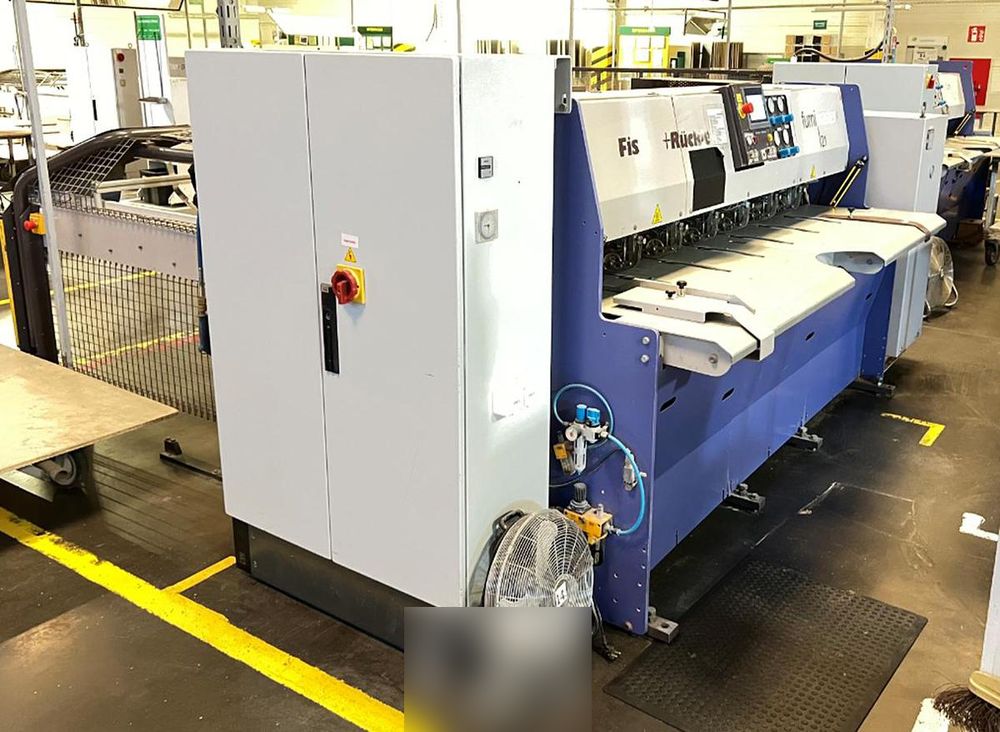

Fisher Ruckle FURNIMASTER FZR-21+DA-12R

Machines connected in one line (all three machines are only sold together):
Veneer cross-jointing machine FURNIMASTER FZR-21
Direct unloading device DA-12R
Scissor lift INCLUDED

Veneer specifications:
Veneer strip length (grain direction) 350 - 2100 mm
Veneer strip width (cross grain) 50 - 500 mm
Veneer strip thickness 0,3 - 1,5 mm

Power data:
Maximum nominal output / machine cycles 30 cycles/min.
Average production speed 17 - 20 cycles/min.
Connection data (Basic machine)
Connection power 9 kW
Compressed air 6 bar
Power consumption
Electric energy 6,2 kWh
Compressed air 15 NL/min.
Dimensions and weight (Basic machine)
Length 3500 mm
Width 1500 mm
Height 1530 mm
Working table height 930 mm (+50/-0 mm)
Net weight, approx. 2500 kg
