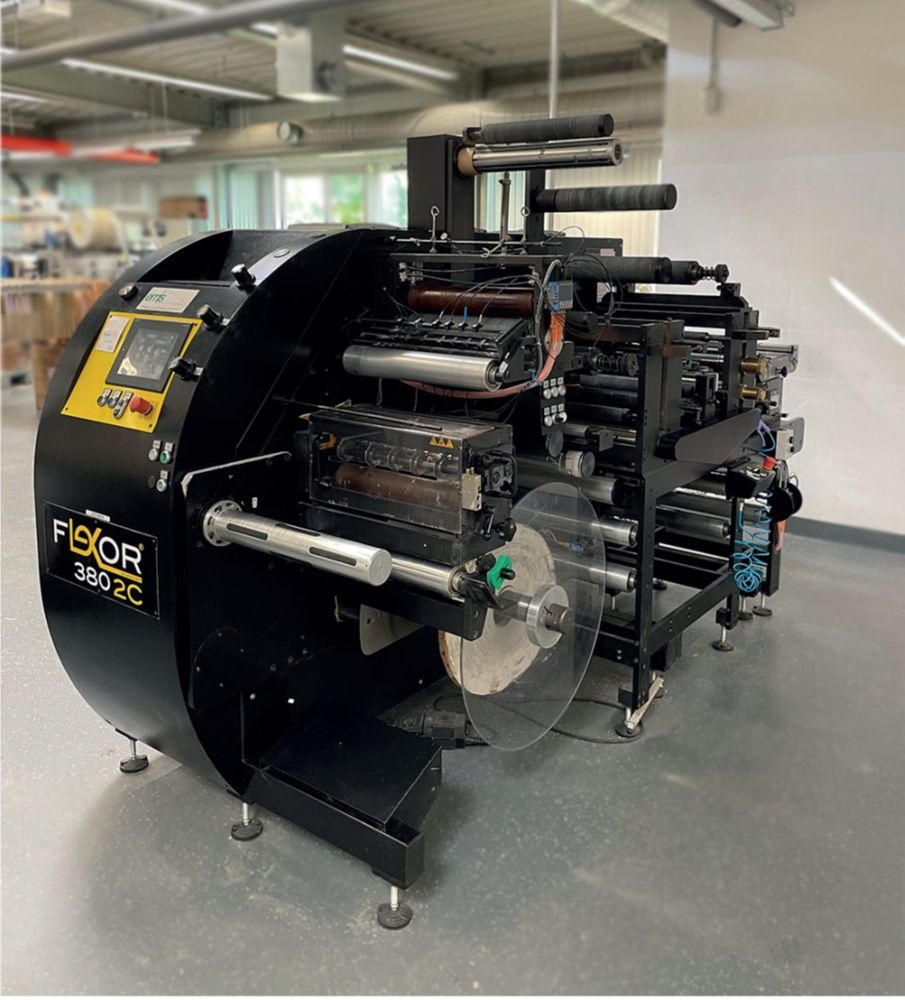

FLEXOR TYO 380 2C 380 mm

Manufacturer EMIS Sp. z o.o.
Web width max. 380 mm
Min. slitting width 20 mm
Max. speed 320 m / min (depending on product)
Max. roll diameter Unwind 800 mm / Rewind – dependent on setup
Pneumatic unwind shaft 1 pc – 75 mm diameter
Magnetic cylinder range 80 – 192 teeth
Drive system Fully servo controlled
Slitting system Shear knives with cassette insert
Die-cutting modules
Double die-cut unit with two servo driven advance shafts
Web guiding E+L (Web guiding control system)
Missing label sensor Installed (12 lanes max.)

Additional features :
Glitter rewind module / Touch panel operation / Dual servo shafts
Included Accessories
Magnetic cylinders 80 – 1 pc, 92 – 1 pc, 95 – 1 pc, 96 – 1 pc, 104 – 1 pc (total 5 pcs)
Manuals / documentation Available at seller site
Electrical connection 3 × 400 V, 50 Hz, 32 A CEE plug
Air requirement min. 6 bar
Machine Dimensions & Weight:
Length | 2.6 m
Width | 1.4 m
Height | 1.9 m
Weight | 2.5 t
Power consumption | 12.5 kW
