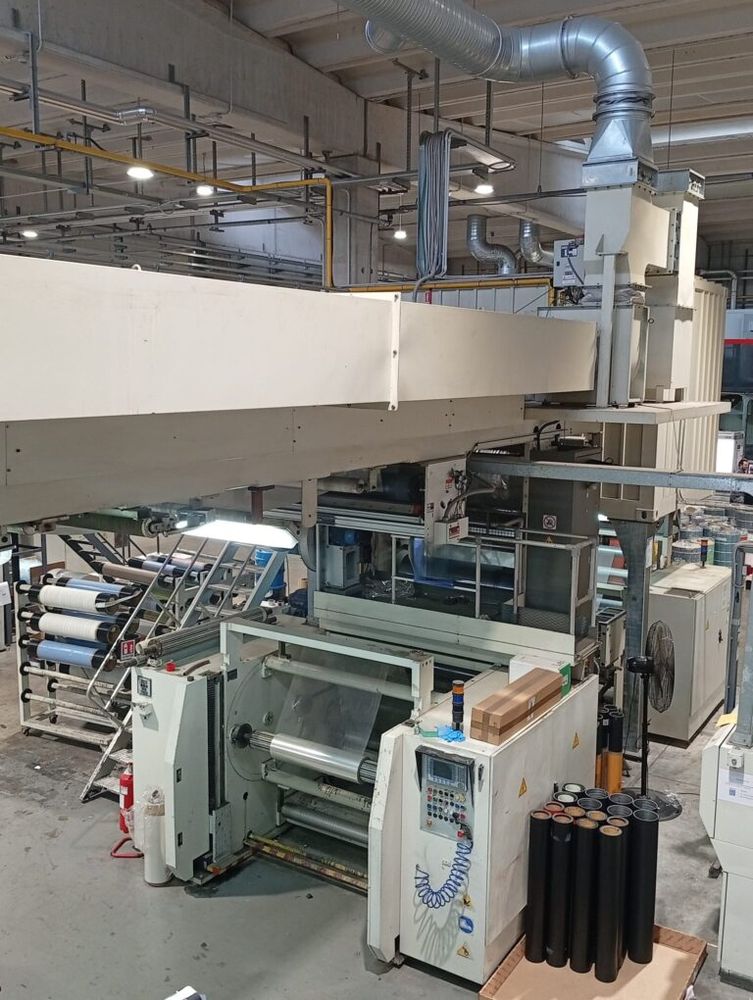

Flexotecnica CHRONOS 10 1200 mm

Condition Good
Year of construction: 2005; installed in 2006.
Number of printing units: 10
Printing possibility: 10 + 0
Printing width: 1200 mm
Material width: 1250 mm
Printing format: 340 – 800 mm
Printing speed: Up to 350 m/min
(Depending on the quality and type of material, inks used, printing format, clichés, ink coverage, and color overlap.)

Drying system: Gas
System: Gearless

Cliché thickness: to be specified
Anilox rollers: ceramic Apex, engraving to be specified
Inks: solvent-based and water-based
Printable material: plastic films
Reel weight range: 2 + 25 kg
Operator side: to be determined
Drive side: opposite to the operator side
Machine color: White RAL 9002
Container and console color: White RAL 9002
Frame and walkway color: Grey RAL 9007
Container legs color: Grey RAL 9007

Automatic Unwinder
Maximum roll diameter: 800 mm
Simultaneous load: 2 rolls Ø 800 mm
Automatic change: new roll min Ø 400 mm
Maximum roll weight: 1000 kg (700 kg with aluminum airshafts)
Core diameter:
Internal: 76 mm and 152 mm
External: to be specified
Cutting blades: 1 (position to be specified)

Automatic Rewinder
Maximum roll diameter: 800 mm
Simultaneous load: 2 rolls Ø 800 mm
Maximum roll weight: 1000 kg (700 kg with aluminum airshafts)
Core diameter:
Internal: 76 mm and 152 mm
External: to be specified
Cutting blades: 1 (position to be specified)

Additionally, for the same machine, we sell:
n.280 sleeves
n.27 anilox rollers
n.32 rubberized sleeves
n.1 BIEFFEBI UNICA 343 plate mounter, year 2007 with dedicated shaft for this printing machine
the machine is equipped with all the accessories: BST camera system, MERO treater, viscosimeter system GAMA
