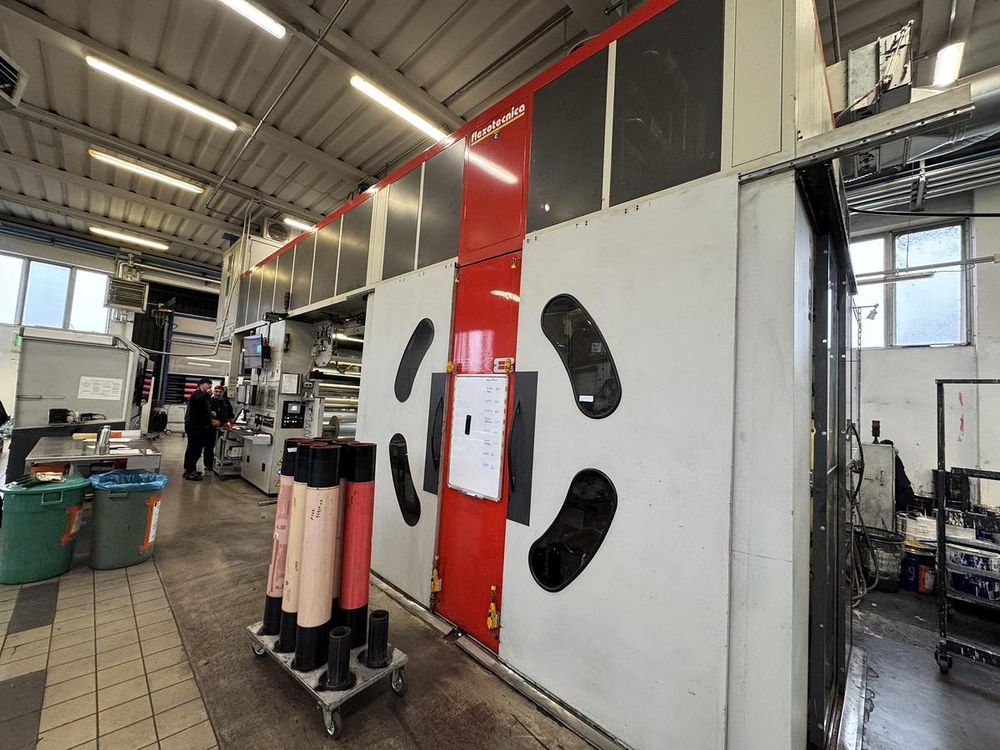

Flexotecnica FX8 8 1200 mm

Condition Used
Number of colours 8
Print repeat range (mm) 400-850
Web width (mm) 1270
Print width (mm) 1200
Unwind diameter (mm) 1000
Unwind type Turret flying splice
Edge Guider Fife
Drying method Thermic Oil
Inspection System Grafikontrol 100% inspection
Rewind diameter (mm) 1000
Rewind type Turret flying splice
Machine speed (m/min) 400
Viscosity System Yes
Autowash System Yes
Corona Treater MeRo
Number of Anilox 25
Number of Sleeves 200
Number of Bridging Sleeves 2x sets

2016
• New mechanical supports for the anilox roller and plate-holder sleeve mandrels;
• Modification of the doctor blade chambers;
• Replacement of the steel mandrels of the plate-holder sleeves with similar carbon mandrels;
• Addition of a control console for the ink viscosity control system;
• Modification of the ink drying system;
• Addition of two new anti-ghost doctor blade chambers;
• Modification of the re-print system;
• Modification of the corona treatment system.

2022
• Replacement of deck positioning motors for new brushless motors.
• New keypads
• Update to latest BOSCH control technology
