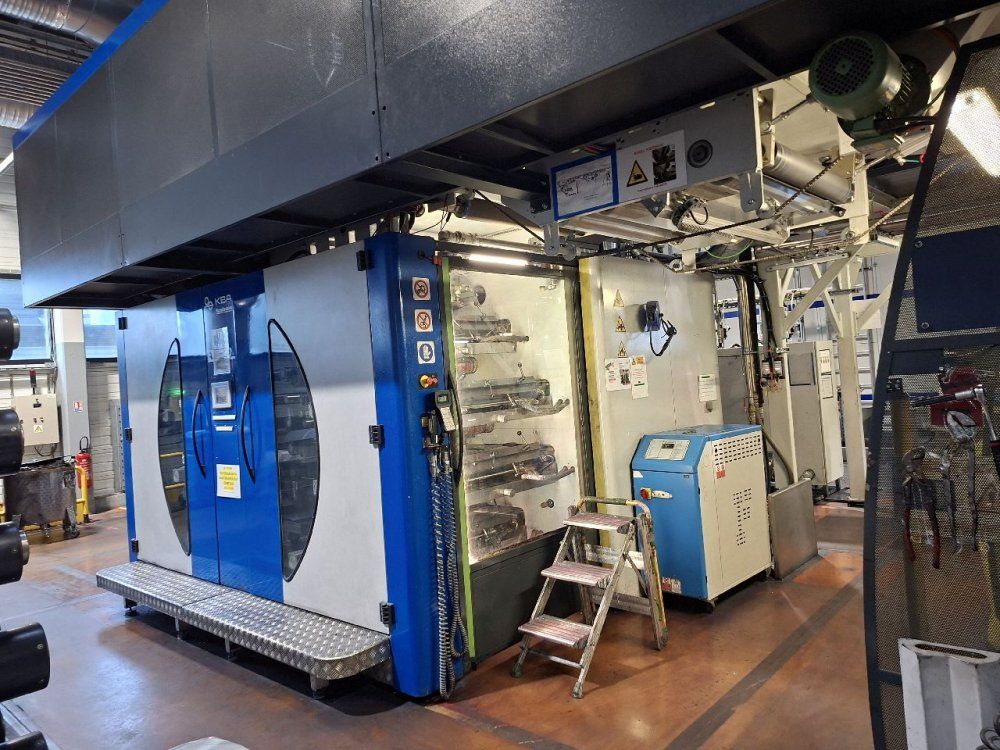

Flexotecnica, KBA EVO XDN 8 900 mm

Number of colors 8
Print possibilityes 8+1 (stack)
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 950
Print width (mm) 900
Min print repeat (mm) 400
Max print repeat (mm) 950
Unwinder type Turret automatic Shaftless
Max reel diameter unwinder (mm) 1000
Rewinder type Turret automatic Shaftless
Max reel diameter rewinder (mm) 1000
Drying 2 zones on CI with 3mt final tunnel and thermo oil heat exchangers , 1 zone with double hood 2x 15 mt on Stack uniy
Videocamera Yes BST 100% and matrix camera
Corona treatment Yes ME.RO.
Web guides Yes in and out
Vyscosity control New Celio
Washing system Yes automatic Rossini
Inking system Closed chamber doctor blades
Anilox 29
Print Sleeves 168 approx.
Print cylinders 4 set of 8 +1 carriers
