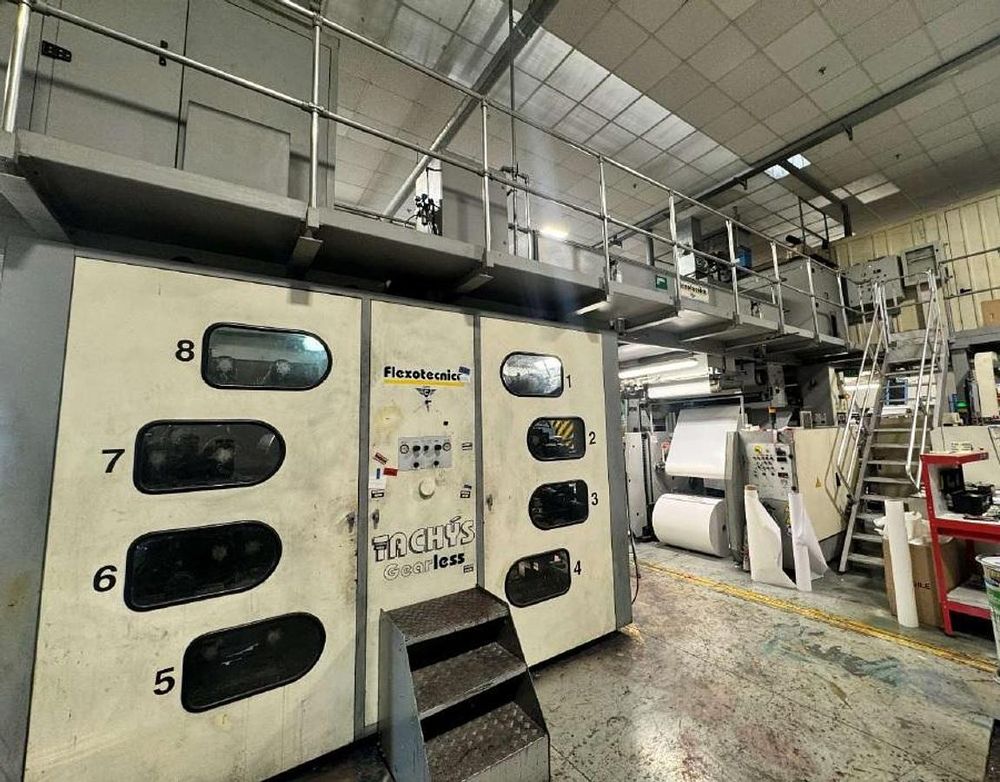

Flexotecnica TACHYS 8 1000 mm

Condition Used
Print possibilities 8+0
Web width (Min. - Max.) 550 - 1050 mm
Printing width (max.) 1000 mm
printing cylinder circumference range 340 - 740 mm
Max. Speed 300 m/min
Inner core at unwinder and rewinder Ø70/90 ±0.5 mm, Ø76/96±0.5 mm, Ø153/182 (adaptors)mm, plates 1.14 mm, adhesive tapes 0.55 mm
Central drum double-walled cylinder in steel,diameter 1700 mm with water circulation for drum conditioning.The drum surface is protected with an Hastalloy coating.
Doctor blade units reverse angle and with enclosed chamber ,they are in Aluminium,Teflon coated.
The units are pneumatically contolled and with special and seals. Ink drop drainers in stainless steel.
Computerised system FNC3000-R provides motorised positioning of the printing decks by means of stepping motors and automatic pre - registar.
Max. unwind reel diameter 800 mm
Max. rewinder reel diameter 800 mm
Voltage 400 Volts/50 Hz/400 A /3 Phase (Auxiliary 110 Volts)
Water supply pressure 2 bar or 30 psi
Compressed air pressure 6/7 bar or 85/100 psi
Sleeve circumference (Plates 1,14) 340, 360, 380, 390, 400, 410, 420, 440, 450, 460, 470, 480, 500, 510, 520, 530, 540, 560, 580, 600, 610, 620, 640, 660, 670, 680, 690, 700.
Sleeve circumference (Plates 2,84) 380 n.8
dimension of machine 16 m x 7.5 m x 5.2 m

Updates of New Parts on the Machine:
BST Camera - 2018 | BST Film guide input output - 2018
NSA Safety System for Fumes Crami - 2018-2022
New Machine PC with Remote Assistance
New Inline Cutting System Helios - 2020
New Inking System Expert - 2018
New Viscometer Selectra System
Corona treatment Softal- 2018
SOCOMEC MASTERYS 4BC 15kVA 3/3 - IP20

Plate mounting machine DUPONT DuPont Cyrel Microflex 1320 (Included )
Visible in operation yes
