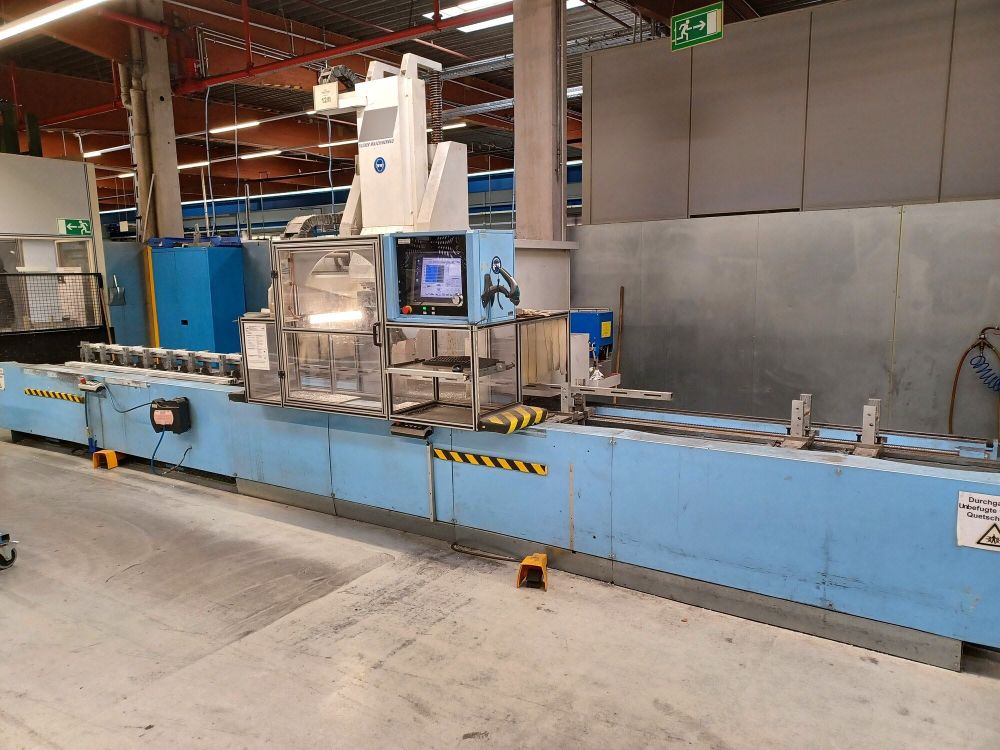

FMB MBZ-2 72/80-4

CNC Aluminum Milling Machine
Including milling cutters and tool holders
Swivel head for 3-sided machining
Used for machining thin-walled aluminum profiles
Includes milling cutters and tool holders

Machining dimensions:
Length 8000 mm x Width 350 mm x Height 200 mm

Travels: X 7000 mm x Y 1000 mm x Z 370 mm
Spindle: 10 kW, 30,000 rpm
Spindle taper: HSK E 40
Rapid traverse (X-Y-Z): 36/26/24 m/min
Power consumption: 18 kVA

Tool changer: HSK E 40 spindle taper
Tool positions: 12
Maximum tool diameter: 35 mm (1 special tool max. 150 mm)
Tool length (incl. tool holder): 150 mm
Control: Graphical user interface, PC control, 2 Pentium PCs, hard drives

Machine dimensions:
Overall length (machining length): 8000 mm + 1800 mm = 9800 mm
Overall depth: 2400 mm
Total weight: 8000 kg
Including milling cutters and tool holders
The machine can be inspected in operation.
