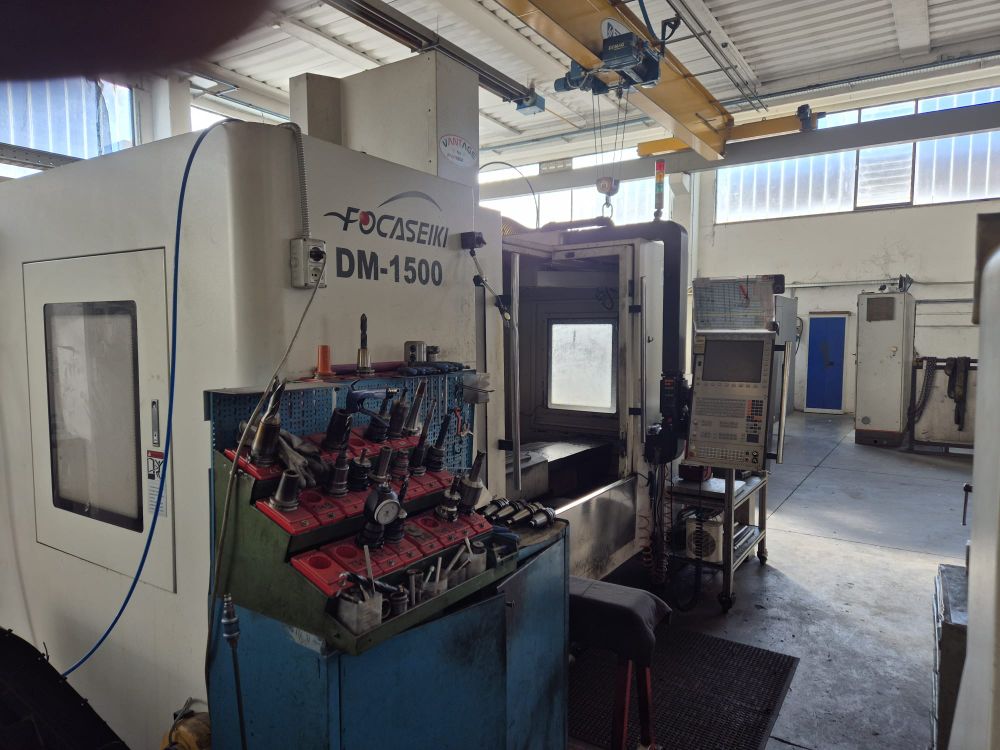

FOCASEIKI DM 1500 3 Axis
Ref :
2773611-3-AW
Condition :
Used
Manufacturer :
-
Model :
FOCASEIKI DM 1500
Nb Of Axis :
3 Axis
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X-axis travel: 1500 mm
Y-axis travel: 700 mm
Z-axis travel: 640 mm
Table dimension: 1500 x 600 mm
Table load capacity: 1500 kg
Spindle nose-to-table distance: 140 - 780 mm
Spindle center-to-column distance: 755 mm
Spindle taper: ISO 40 DIN 69871-A
Spindle speed: 15,000 RPM
Motor power: 17/10 kW
X-Y axis rapid feed: 30 m/min
Z-axis rapid feed: 24 m/min
Work feed: 12 m/min
CNC: HEIDENHAIN iTNC 530
Electronic handwheel
Number of ATC positions: 30
