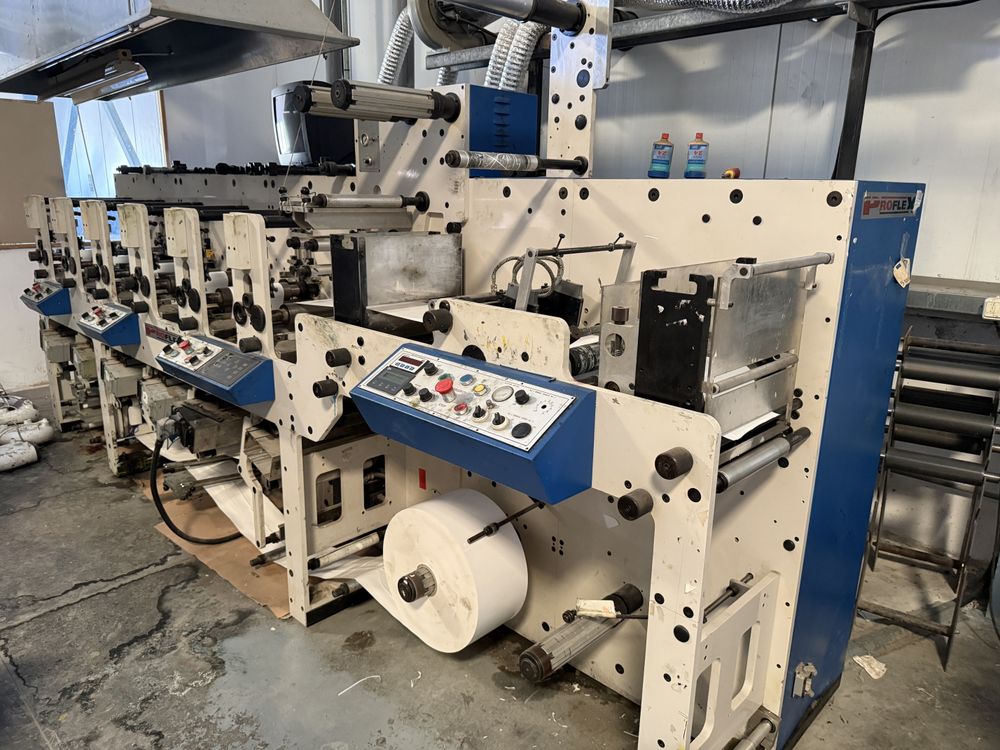

Focus Proflex Series 6 250mm - 330mm

Type: Inline Narrow Web Flexographic Press
Application: High-quality self-adhesive labels, film, and packaging production.

2.Technical Specifications & Configuration :
Printing Stations: 6-Color printing capability (configured with 6 print towers).
Web Width: Estimated 250mm - 330mm (to be confirmed by measurement).
Unwind Unit: Heavy-duty floor-standing unwind station for large diameter master rolls.
Control Interface: Independent operator control panels at each station for precise registration and speed management.
Monitoring System: Integrated Video Web Inspection system with CRT monitor for real-time print quality observation.

3. Drying & Curing System (Dual Configuration) :
Hot Air Drying: Full high-capacity Hot Air drying system installed on all stations, including extraction manifold and blowers. Ideal for water-based and solvent inks.
UV Curing Capability: The press is equipped with electrical housing and mounting points for UV curing.
[Note: The exact number of operational UV lamps and the presence of a dedicated UV power cabinet are subject to final on-site verification].

4. Finishing & Converting :
Die-Cutting Station: Rotary die-cutting unit for precision label shaping and waste matrix stripping.
Slitting/Rewinding: Outfeed section configured for final roll finishing.
