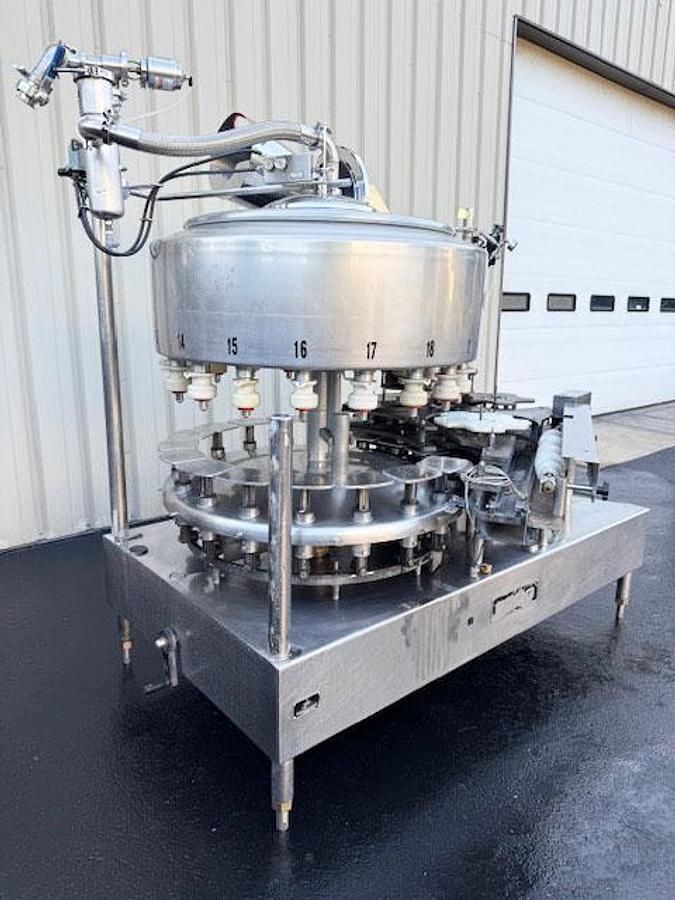

Fogg FG-185

18 Valve Bottle Filler with 5 head Plastic Screw Capper

Details:
- Stainless Steel Construction
- Left to Right Operation (Clockwise)
- 18 Valve Gravity Type Bottle Filler with two (2) sets of filling nozzles (.75” and 1")
- Filling Valves with 7.50" (Gallon) Pitch / Centers
- 5 Head Rotary Screw Capper presently set for 28mm Flat Plastic Screw Caps
- FOGG Model D18-RH Rotary Cap Sorter Feeder
- Includes Cap Chute and Pick-Off Assembly
- Includes (3) Existing Bottle Change Parts for 500ml round, 1liter round, 3 liter round,
- Stainless Steel Operator Panel with E-Stop
- Tri-Clover Filler Bowl Float Mechanism
- Tri-Clover Pneumatic Product Infeed Valve
- 3.25” Wide x 66” Long Pull Through Conveyor Section
- Electrical 460 Volt, 3 Ph, 60 Hz,
- Variable Speed Drive
- Threaded Floor Leveler Legs
- Overall Dimensions 92” L x 64” W x 96” H
