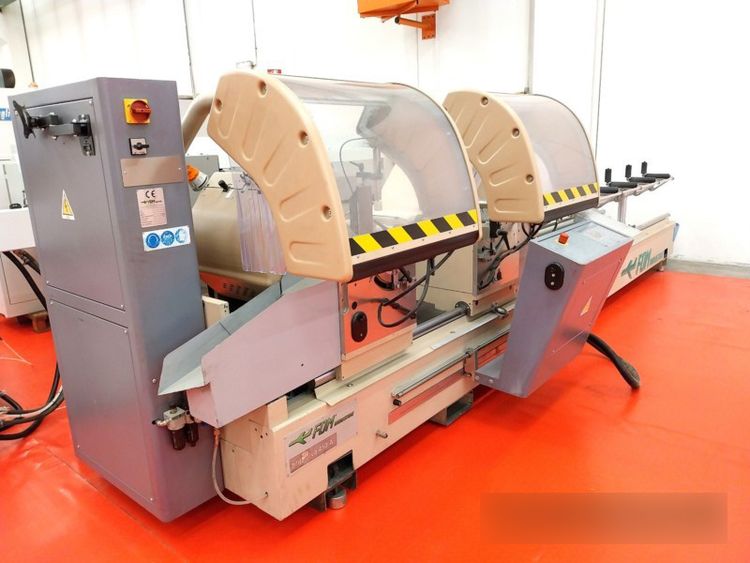

FOM BLITZ ALVA 450

Double-head electropneumatic sawing machine for cutting
and machining aluminium profiles, plastic, light alloys, pvc - CE Standard
Useful cutting length mm 4000
Vidia blade diameter mm 450 F32
Three-phase motors Hp 3 - Revolutions/min 2800
Head inclination: 90 degrees - 45 degrees external - 22,5 degrees external -
Intermediate graduation with mechanical stop and reading on graduated vernier scale
First head fixed
Second head mobile: automatic positioning with manual option - Automatic head positioning speed 12 mt/min
Movable head positioning accuracy: +/- 0,1 mm
Minimum cutting capacity between the two heads: 300 mm
Maximum cutting capacity between the two heads: 4000 mm
Hydropneumatic blade feed (adjustable output speed - rapid retraction)
Vertical and horizontal pneumatic clamps
Spray lubrication of the cut
Mobile head roller conveyor 3 mt
Operating pressure 7 bar
Suction mouth diameter mm 100
Overall dimensions mm 5760 x 1600 x 1950 h
Weight kg 1550
