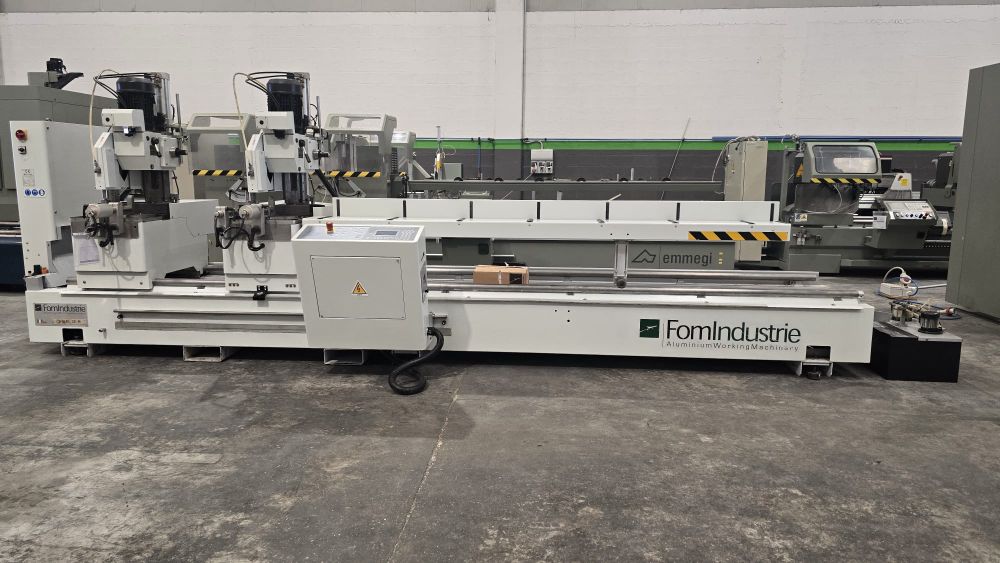

FOM Steel 35 B Double head cutting machine

Double head cutting machine for iron
HSS discs Ø 350 mm – thickness 2,5 mm. – num. teeth 280 – tooth pitch 4 mm.
Three-phase motors a 2 speed 2,2/1,4 KW – 1440/720 rpm/min – 230/400V – 50 Hz
Direct engine transmission – Disco Widia
Disc holder shaft Ø 32 mm
Blade rotation a 4 different speeds (15- 30 – 45 – 90 rpm/min)
90 pneumatically rotating work surface° a 45° interior
Vertical sliding head on linear guide
First fixed head
Second moving head: automatic positioning with manual possibility
Positioning speed (automatically) of the moving head: 20 m/min
Positioning precision of the moving head: +/- 0,1 mm
Rulliera testa mobile (3 mt)
Minimum cutting capacity between the two heads: 480 mm
Max cutting capacity between the two heads: – 5000 mm
Manual kit for undersize cuts
Oil-pneumatic widia disc advancement (adjustable output speed – rapid approach and return)
