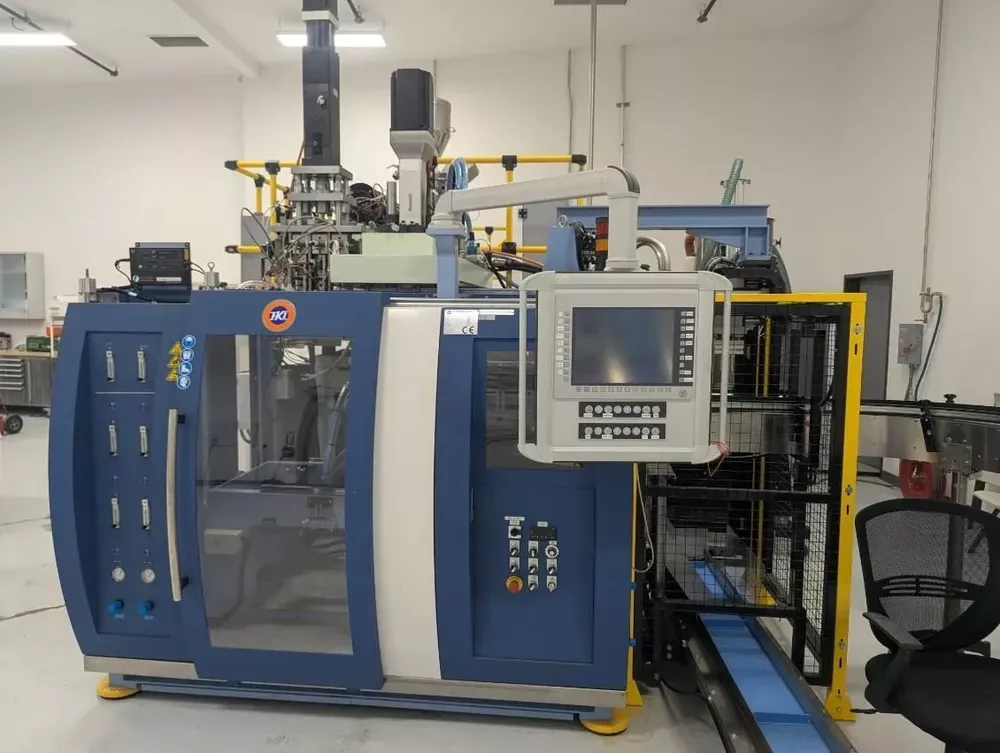

Fong Kee EHB 65T03SS

Type Single-Sided Fully Electric Extrusion Blow Molding Machine
Products 500ml-70 ml 38g-5g (Gross Weight) / 65mm 30/1
Extruder 150 kg/hr (Output) / 300mm X 600mm (Platen)
Configuration Long Stroke Design
Application Suitable for Containers / Technical Parts / Precision Molded Components
Benefits Fully Electric Operation (Energy Efficient/High Repeatability)
Long Stroke Capability for Deeper Molds / Larger Parts Stable and
Consistent Processing Performance
Triple Head System 100mm Center Distance Ondependent Programmer with
Servo Motor Control
Triple Head System - Inclusions Extra Blow Pins / Support Air System
Triple Head System - Advantage Multi-Cavity/Multi-Parison Capability for
Increased Output / Greater Process Control via Servo Programming
Conveying System - Inclusions Straight & Inclined Conveyor (Part Handling and Transfer)
/ Dedicated Bottle Conveyor for Finished Product Takeaway /
Fully Integrated Downstream Flow from Molding to Collection
Additional Notes Originally Supplied as a Complete Production System
(Not Pieced Together) / Designed for Continuous Operation with Efficient Part Handling /
Ideal for Bottle/Container Production
Technical Molded Components Pilot or Mid-Volume Production Lines

Additional machine Details Include:
Electric, Horizontal, Blow , 65 mm extruder,
T03 platen size 400 x 320mm (HxW), Single Head,
Continuous type, Single Station
