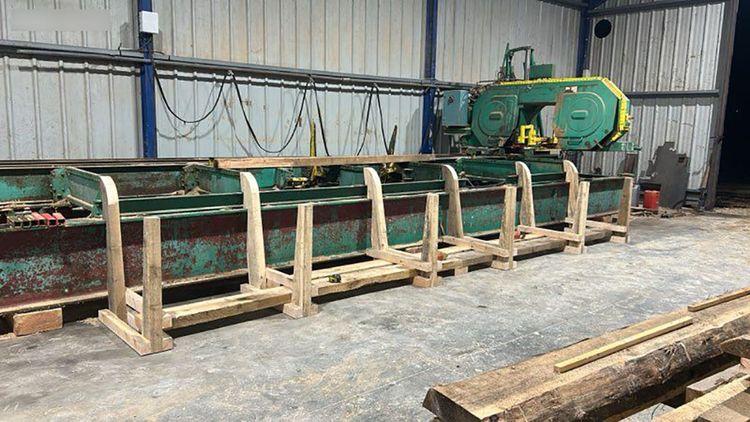

Forestor Tom Sawer Horizontal Sawmill

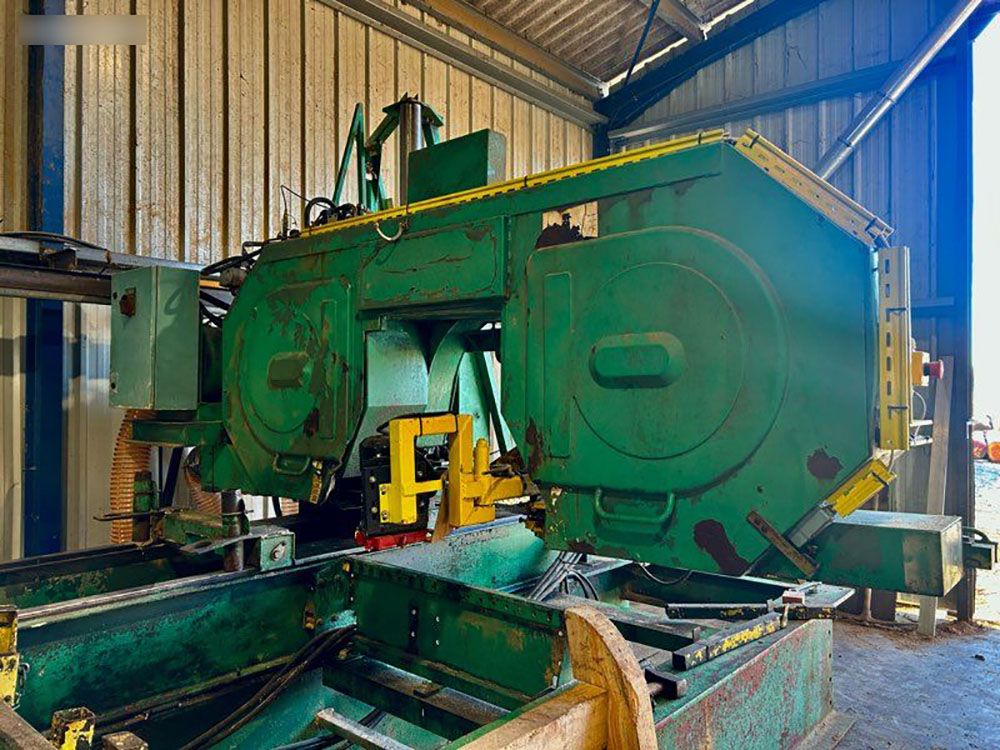

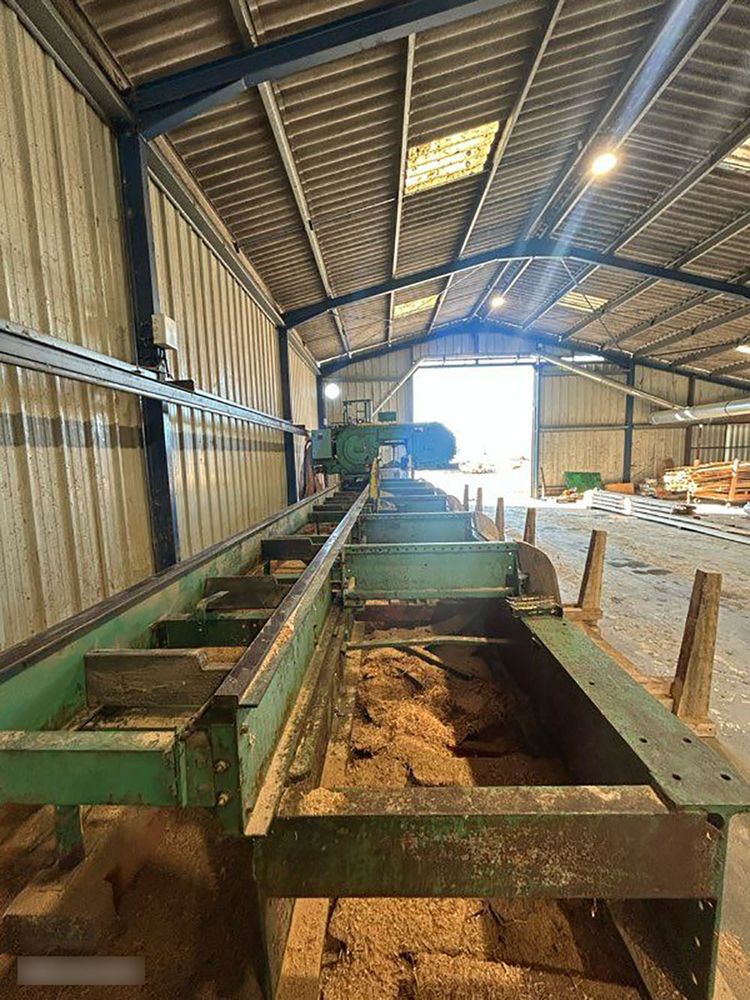

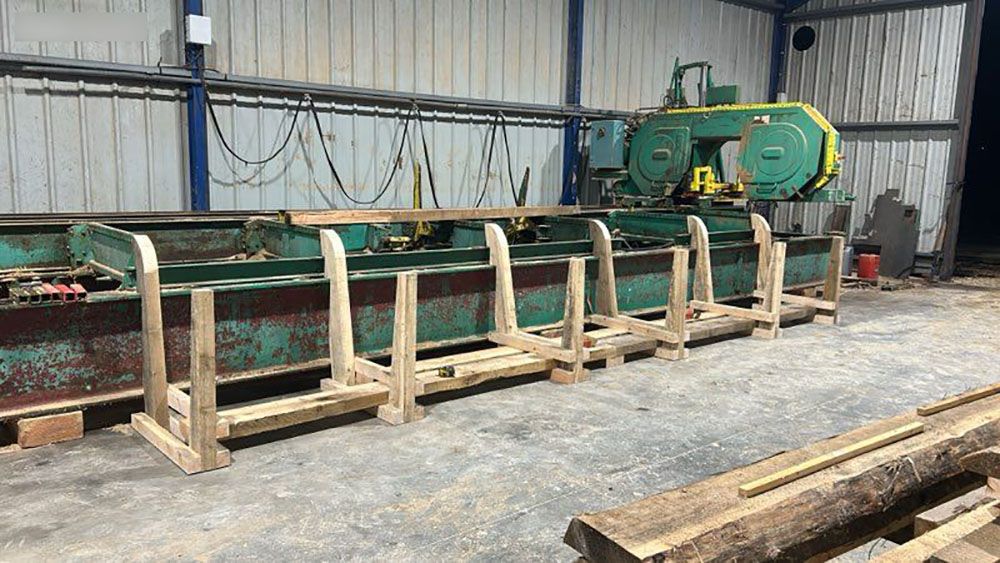

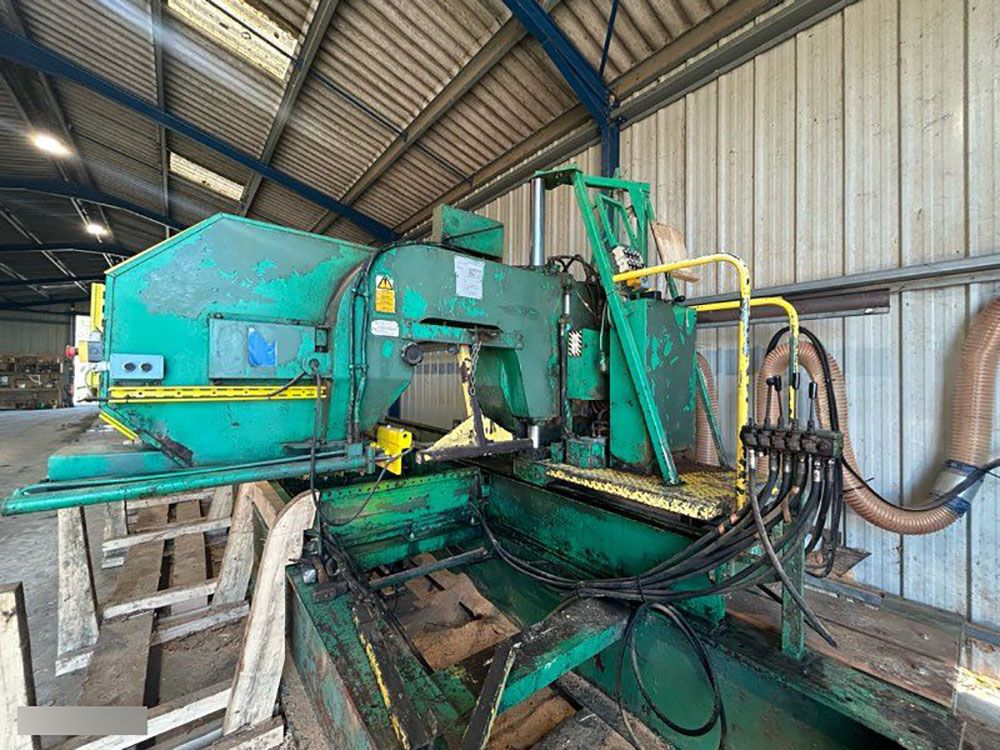

FORESTOR "Tom Sawer" horizontal sawmill, 1991 model, mounted on a steel frame
MACHINE AVAILABLE JUNE/JULY 2026!

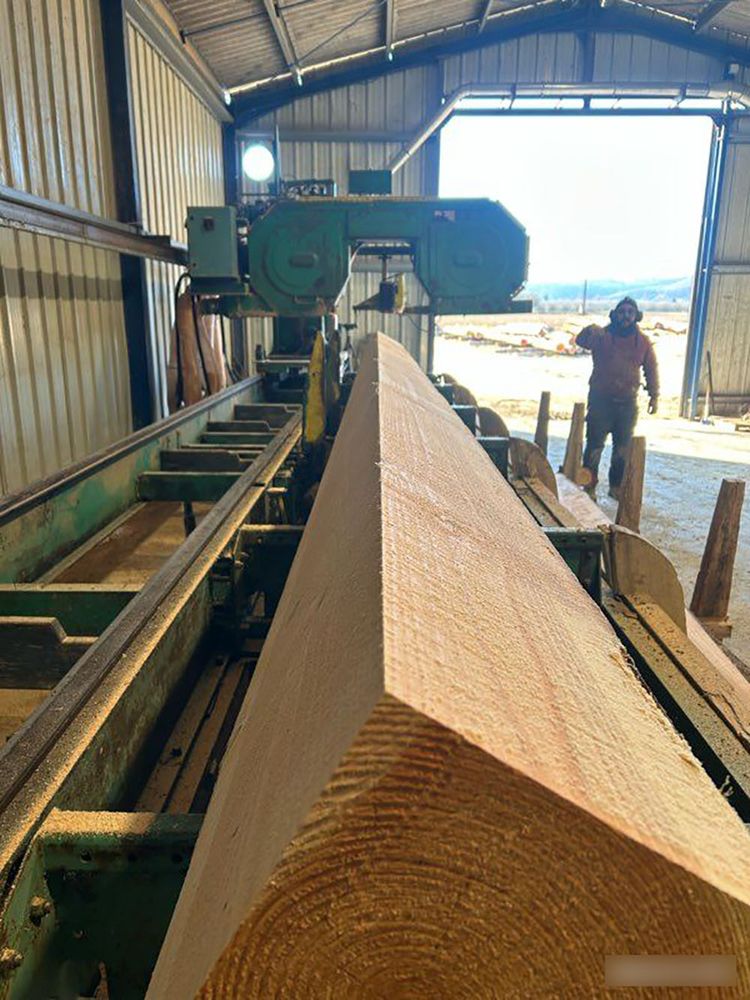

This machine is currently in operation and can be viewed in action.
It's a compact, versatile machine, ideal for everyday craft use and starting a business.
It can be mechanized (discharge rollers, log loader, etc.).
The machine has been fully serviced (filters, pumps, consumables), but comes without a seller's warranty.
Conversion to a mobile sawmill is possible.
This machine is easy to use and can be connected to the standard three-phase power grid (yellow tariff).

Capacity:
- Minimum length: 1.5 m
- Maximum length: 7.5 m (up to 7.8 m with care)
- Minimum diameter: 20 cm (smaller diameters are possible but impractical)
- Maximum diameter: 81 cm (up to 100 cm is possible with careful management)
- Output: between 2 and 4 m³ FINISHED/day

Cutting characteristics:
- STANDARD 110 mm stellite bands (6.08 m long) in 40 or 45 mm pitch
- 22 kW main motor
- 5.5 kW hydraulic pump motor
- Disc scoring unit

General data:
- Length: 10 m
- Width: 2.7 m
- Height: 2.8 m
- Total weight: 6.5 T

Options:
- Manual dividing with vernier scale; electronic dividing can be added MUDATA
- ALL HYDRAULIC
- forward movement
- raising/lowering
- Pressure guide positioning

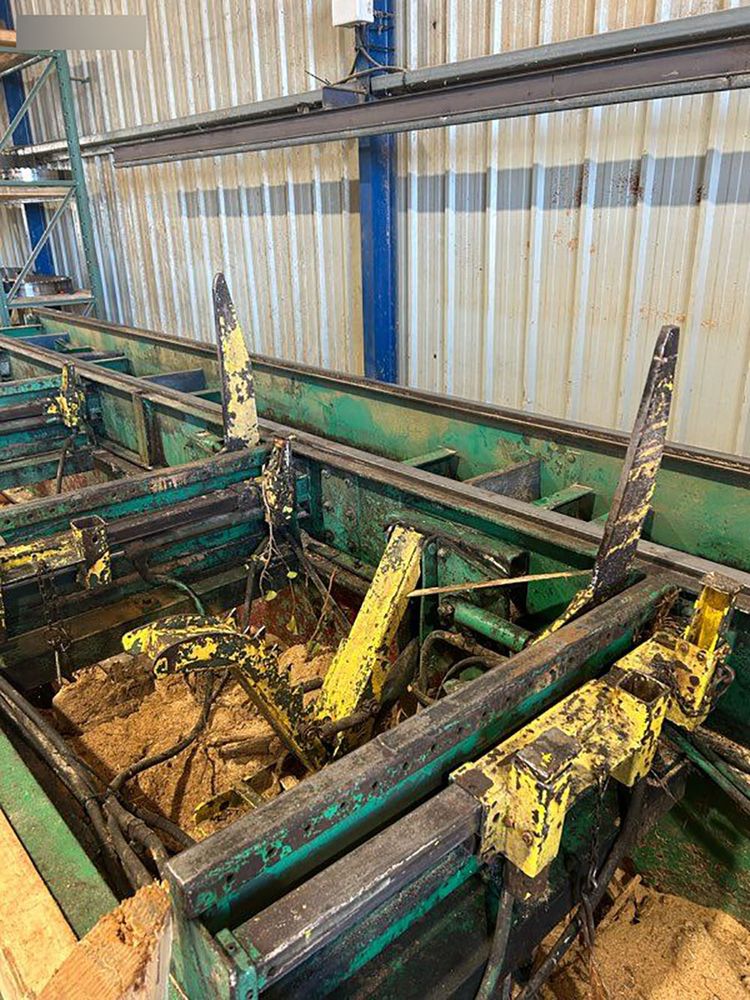

- 4 claws
- 2 positioning brackets
- Log turner
- Additional distributor channel
- Machine sold with 9 to 12 ribbons depending on availability
