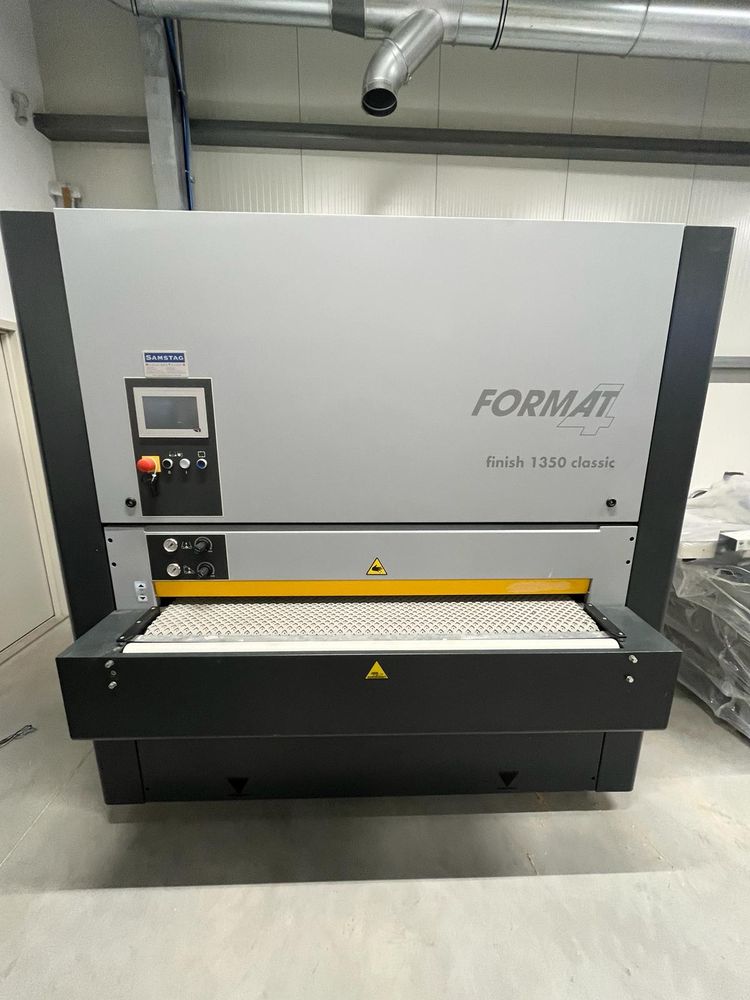

Format Finish 1350 C-G

Used Machine
Cross Sanding Machine

Product Benefits:
Under perfectly varnished, stained, or oiled wood surfaces, there is always a perfectly sanded surface!
Felder sanders are characterized by solid construction, state-of-the-art machine technology, and maximum productivity.

Key Highlights at a Glance:
Sanding width 1350 mm
Sanding width 3-170 mm
Combined superfinishing unit
Touch-screen control for work processes
The Felder operating concept guarantees maximum process and work safety

Your Benefits at a Glance:
Time Savings
Motorized adjustment of the contact rollers in 1/100 mm range from the control panel
Innovative unit arrangement for pre- and fine-sanding of veneered workpieces
Brushing devices at the machine outlet
Lacquer sanding available for additional equipment

Convenience
Fixed feed table height (machine head adjusts)
Touch-screen control with clear image display and program memory
Machine data recording for sanding belt wear and much more.
Tool-free handling for sanding belt changes
Large foldable table extensions for the heaviest workpieces
Flexibility
Units for calibration, fine sanding, or paint sanding
Variable feed speed up to 20 m/min via inverter
Innovation
Electronically segmented sanding pad with silicone technology for minimal air consumption
Combined superfinishing unit including a Chevron sliding belt to compensate for oscillation marks
Quality
Solid mechanical construction
Durable Machine Components

Basic Equipment:
Finish 1350 Classic Control Unit
Control unit with 7" color touchscreen, 100 program memory locations, maintenance intervals, clear text error messages, ammeter for load monitoring
Feed table
Fixed infeed height - fixed table, 900 mm, electric height control of the units including fine adjustment from the control panel, V-speed continuously variable from 2.8-20 m/min.
Adjustable via inverter from the control panel. Hand guard and workpiece over-thickness protection.
Workpiece detection sensor with 25 sensors. 55 mm segment width.
Endless belt conveyor with honeycomb structure.
Automatic feed belt centering.
Finish 1350C High Gloss Cross Sanding Unit
Segmented, electronic-pneumatic ESC sanding pad, segment width 25 mm, including quick-change system.
Chevron sliding belt between sanding pads. Sanding belt for homogeneous sanding without oscillation marks.
Variable pressure control. on the operator side
Electro-pneumatic sanding belt oscillation
Electronic sanding belt safety device
1 x 7.5 kW (10 HP) motor
Star-delta start-up
Cleaning fan with timer
Cutting speed 12 m/s
Sanding belt 140 x 4560 mm
Combined superfinishing unit 1350C:
Rubber-coated, grooved contact roller with 85-90° Shore hardness and 142 mm diameter.
Electric-motor position-controlled grit compensation, segmented, electro-pneumatic sanding pad
ESC, 25 mm segment width, including quick-change system
Variable pressure control on the operator side

Chevron sliding belt between sanding pad and sanding belt for homogeneous sanding without oscillation marks
Mechanically pre-tensioned rubber pressure rollers
Electro-pneumatic sanding belt oscillation
Electronic Sanding belt safety device
1 x 15 kW (20 HP) motor including
Automatic star-delta start-up Copy
Cutting speed 16 m/s
Sanding belt 1370 x 2200 mm

Paint sanding package finish 1350 classic gloss
Vacuum table with 4 kW (5.5 HP) blower integrated into the machine stand
Foldable work table on the outfeed side, L = 900 mm
Foldable work table on the infeed side, L = 900 mm
Cleaning blower with timer control
Variable cutting speed from 2.4-19 m/s; for 7.5 kW motor
The sanding belt speed can be ideally adjusted to the surface requirements thanks to the stepless adjustment from 2.4-19 m/s.

Variable cutting speed from 2.4-19 m/s; for 15.0 kW motor
The sanding belt speed can be adjusted using the Continuously adjustable from 2.4 to 19 m/s, ideal for surface requirements.
"Scotch Brite" brush attachment at the machine outlet, Ø 150 mm, including brush
