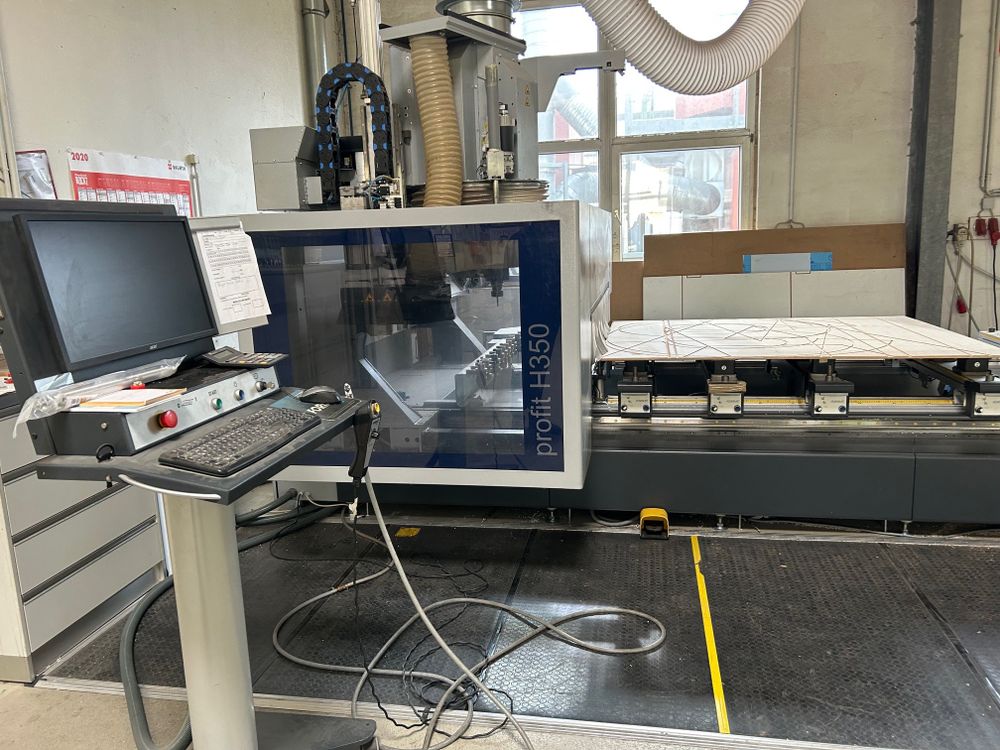

Format4 Profit H 350 16.30 5-axis

Used machine
Equipment and technical specifications:
- Electrics 3x400V 50 / 60Hz
- Cardan 5-axis electric spindle 12 kW (S6) HSK F63
- 24,000 rpm
- Ceramic bearings incl. Liquid cooling with stepless height-adjustable extraction hood - electric motor controlled
- Full rated power at approx. 12.000 rpm
- Speed: 1000 - 24000 rpm
- Drive: 3-phase HF motor by inverter controlled
- Direction of rotation: right/left
- 2 controlled compressed air connections
- Interface for aggregates
- Tool weight (rotating): 6 kg
- max. Saw blade Ø 350
- Spindle cooling: liquid cooling
- Extra-step hood
- Profit H350 16.30:

CNC machining center in gantry construction (without tool) with digital drives (driven on both sides).
The machine stand of the Profit H350 16.30 is made of thick-walled, electro-welded Mold pipes made.
The steel ribbing inside the stand becomes a Achieves high stability.
- Machining field H350 16.30:
Travel of the axles:
X= 4000 mm
Y= 1970 mm
Z=455 mm

Field of work:
X= 3000 mm
Y= 1500 mm
Z= 150 mm passage height

Axis positioning speeds:
Are directed by the elected
Security system (these are to be taken from the layout).

- Both-sided driven driving portal
- X-axis guide system:
The driving portal of the X-axis is driven by a rack with an inclined, bombed tooth shape - this is guaranteed highest precision.
The reduction gear ensures the highest machining quality and repeatability.
The bearing is carried out by means of encapsulated ball circulating jaws running on hardened and ground linear guides.

- Guide system Y-axis:
The bearing is carried out by means of encapsulated ball circulating jaws running on hardened and ground linear guides. The Y-axis is positioned by means of a ground ball screw.

- Guide system Z-axis:
The bearing is carried out by means of encapsulated ball circulating jaws running on hardened and ground linear guides.
The Z-axis is positioned by means of a ground ball screw.

- Automatic central lubrication:
The grease is controlled to the guide carriages of the X, Y and Z axes as well as to the ball screws in Y and Z promoted.
The lubrication process is carried out automatically after a predetermined time.


- 12-fold linear tool changer on the left side of the machine stand incl. a pickup space for units:
The 12-fold linear changer ensures the shortest changeover times and offers sufficient space for milling tools.
An aggregate change slot (for assembly variants see layout)
Max. Tool diameter 250 mm
Max. Tool length 240 mm

- Drill head DH 18 6H 1S:
Vertical 12 spindles: 7 spindles in X-direction and 5 spindles in the Y-direction.
Horizontal 6 spindles: 4 spindles in X direction and 2 spindles in the Y-direction.
Preliminary stroke = 70 mm
max. Drill length = 70 mm and shaft D = 10 mm.
All spindles are individually driven and retrievable.
1 saw – in X direction
max. Saw blade diameter 120 mm
max. Blade thickness 5 mm
max. Speed continuously up to 7500 rpm.
The drilling group covers the entire field of work both
Horizontally and vertically.

- Controlled central suction connection:
Either drilling head or the milling spindle is suctioned off via the program control.
This controlled slide achieves an optimized suction capacity.
Connection diameter see layout

- 6 workpiece supports:
With front and rear row of stops.
Tubeless vacuum two-circuit system with suction cup height 100 mm.
Pneumatic locking of the workpiece supports on hardened and ground round shafts.
A front and rear program-controlled pneumatic stop cylinder on each support.
4 sliding side stops in Y direction.
4 Inserts make it easier to put on or remove large/heavy workpieces.
Load capacity per insert aid 20 kg.
Arrangement according to machine layout.

- Positioning display of workpiece supports and vacuum suction cups:
The workpiece, the workpiece supports and the vacuum suction cups are displayed simultaneously in the CNC board.
This guarantees that the workpiece is securely positioned and there is no collision between the tool and the vacuum cleaner.
The exact position of the vacuum suction cups on the workpiece supports is indicated by laser.
- Vacuum connection for stencil milling work on left side of the machine, Durc
