Formech 686

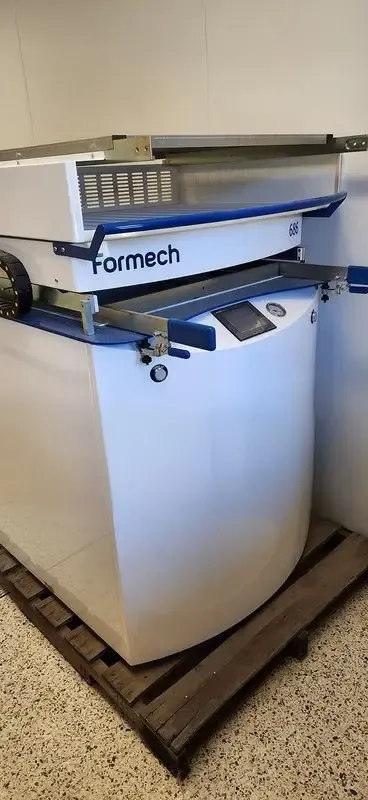

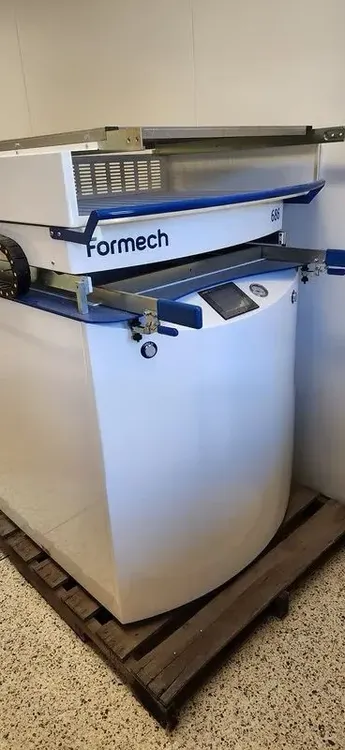

Formech 686 vacuum former
new 2016- removed from college lab, limited use
new cost starting at $24,800
specs from Formech literature
Forming area: 25.4 x 24.4 in
Sheet size: 27 x 26 in
Max depth of draw: 12.6 in
Max material thickness: 0.2 in

Power
Single phase power requirements: 208-240V / 40A
Power consumption (kW): 8

Heating
Heater type: Quartz
Heating zones: 6

Air
Air requirements (PSI/bar): 87 / 6
Operating interface: 4.3" Colour HMI
Vacuum pump type: Dry rotary vane pump
Pump flow (SCFM @ 0 in. / 60Hz): 11
Pump flow m3 /h @ 0mbar / 50Hz: 16
Mould release method: External air supply

Dimensions
Machine width: 37.8 in
Machine height: 45.9 in
Machine depth: 76.1 in
Machine weight: 573.2 lbs

Specifications
LENGTH 25"
WIDTH 25"
STROKE 12"
