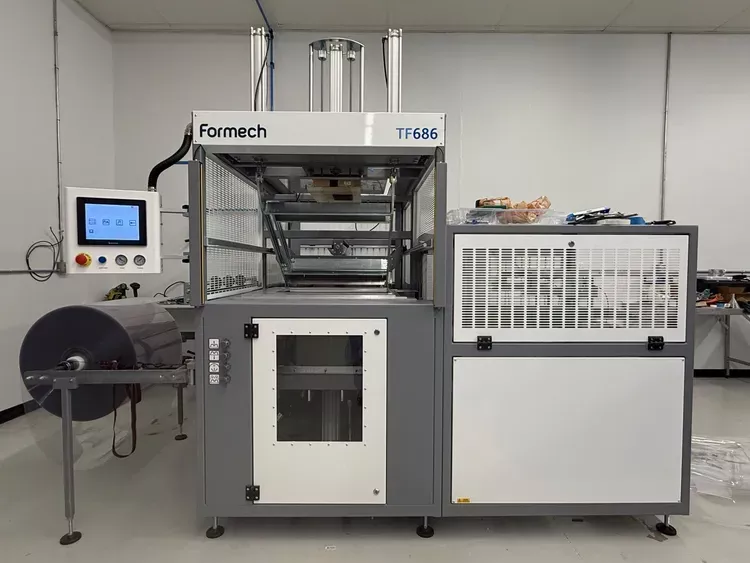

Formech TF 686

Used Formech TF 686 vacuum former
Forming capacity
Forming area 25.5 x 24.5 in
Sheet size 27 x 26 in
Max depth of draw 13.8 in
Max material thickness 0.2 in
Dimensions
Machine width 144.8 in
Machine height 101.4 in
Machine depth 102.4 in
Machine weight 2535.3 lbs
Power
USA – 3 phase power requirements 208-240V / 40A
Power consumption (kW) 11
Air
Air requirements (PSI/bar) 87 / 6
Operating interface 9.7" Colour HMI
Vacuum pump type Oil filled rotary vane pump
Pump flow (SCFM @ 0 in. / 60Hz) 15.9
Pump flow m3 /h @ 0mbar / 50Hz 23.5
Mould release method External air supply
Heating
Heater type Ceramic
Heating zones 16
optional Formech Die Cutter available -quote seperately
Optional roller die cutter available
