Fortress Phantom, FOOD PROCESS METAL DETECTOR

FOOD PROCESS METAL DETECTOR
with elevating belt Z-CONVEYOR,
20x8.5 opening,
food grade, stainless steel

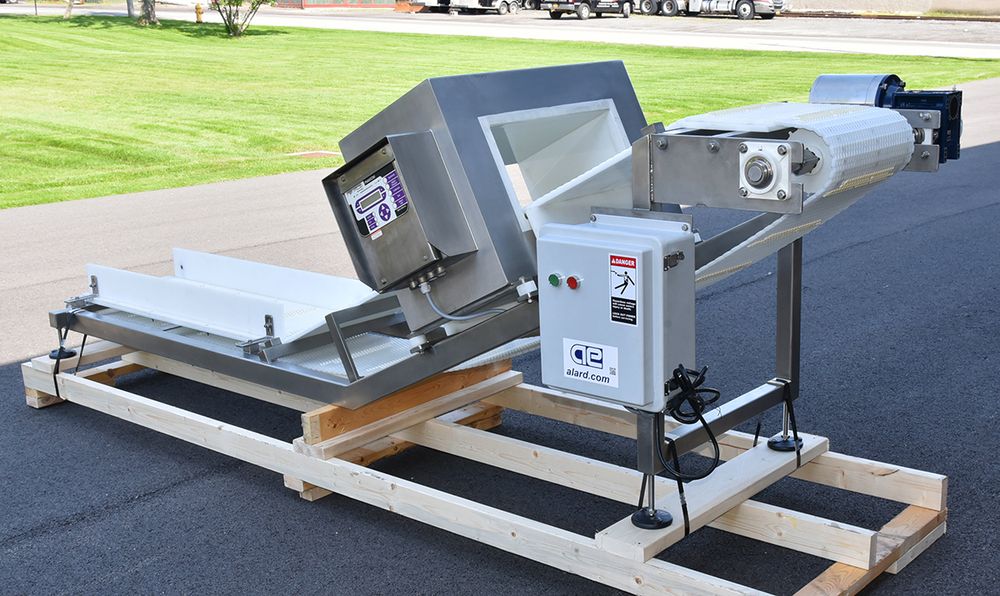

a Fortress Phantom stainless steel belt-transfer metal detector
with a 8.5 inch high by 20 inch wide USABLE aperture opening,
on a stainless steel Z-shaped incline conveyor,
with belt stop alarm reject for product inspection of bagged products in line
after a vertical form-fill-seal machine (VFFS) bagger;
to receive the bags from the low discharge and raise them back
to line level while metal-checking.

FEATURES:
• Fortress stainless-steel search head enclosure:
o Integral operator touchpad control panel.
o NEW epoxy liner.
• Stainless steel elevating Z-shaped conveyor with: 52 inch long horizontal infeed section, 70 inch long inclined section, 15 inch long discharge section.
o 137 inch by 16 inch wide interlocking plastic chain type belt.
o Rubber non-slip top strips on 6.5 inch centers.
o 5 inch (minimum) infeed height, 35 inch (minimum) discharge height - mounted on threaded height-adjustable legs.
• Left to right product flow direction from the operator control position.
• Belt stop alarm configuration.
• Complete with a (new) gasketed PVC conveyor control box.
• All food grade sanitary stainless steel construction.
• New 1/2 HP stainless steel shrouded washdown drive motor with variable speed control.
• 110 volt single phase (standard household current) electrical input.
