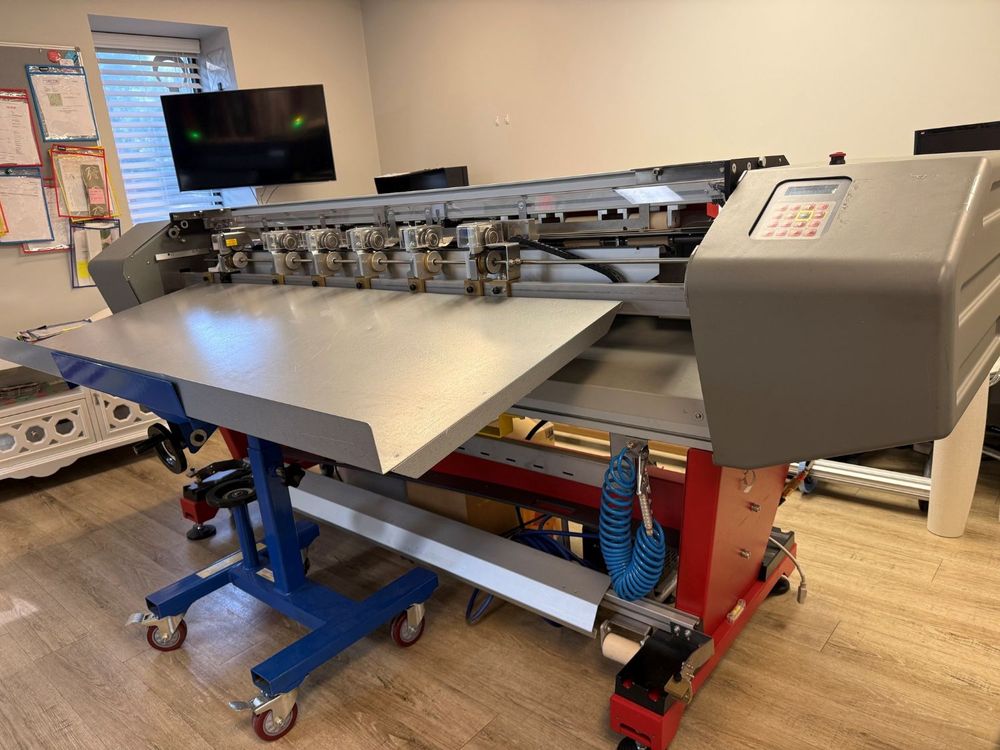

Fotoba XLD 170 WP

The Fotoba XLD 170 WP Digital Cutter is an automatic, high-precision X/Y cutting solution specifically engineered
for the flawless finishing of wallpaper and other flexible media, enabling perfect, seamless butt-joints for side-by-side applications.

Features:
- Exceptional Accuracy: The WP version is specifically designed for high precision,
delivering a vertical (Y-axis) cutting accuracy of ±0.068 mm (0.002 in), which is critical for seamless wallpaper installation.
- Automatic Alignment: It features patented "True Edge Tracking" technology and automatic scanning
of cut marks to realign itself to the edge of the printed image, compensating for any feed misalignment or skewing during printing.
- Versatile Media Handling: The cutter can process a wide array of flexible media up to 1 mm (0.04 in) thick,
including photo paper, vinyl, self-adhesive vinyl, PVC, film, canvas, and laminated prints.
- High Efficiency: Designed for production environments, it can handle an entire 150-foot roll in under 15 minutes,
with a feeding speed of up to 18 meters per minute (approx. 50 ft/min).
- Roll and Sheet Capability: It is a flexible solution designed to work effectively with both rolls and hand-fed sheets.
Integrated Workflow: It can be installed in-line with a printer using a buffer system to create an automated, high-speed print-and-cut workflow.

Specifications:
- Max cutting width: 170cm/67in.
- Min cutting width: 28cm/11in.
- Max roll diameter allowed: 26cm – 80Kg | 60cm – 200Kg with Heavy Duty accessory (optional) | 60cm – 400Kg con JRU170 (optional)
- Max cutting thickness: 1mm
- Feeding speed: 18mt/min
- X cutting accuracy: 1mm
- Y cutting accuracy: 0,068mm
- Net Weight: 250Kg
- Gross Weight: 515Kg
- Dimensions: 281x87x110h
- Shipping Dimensions: 303x103x145h
