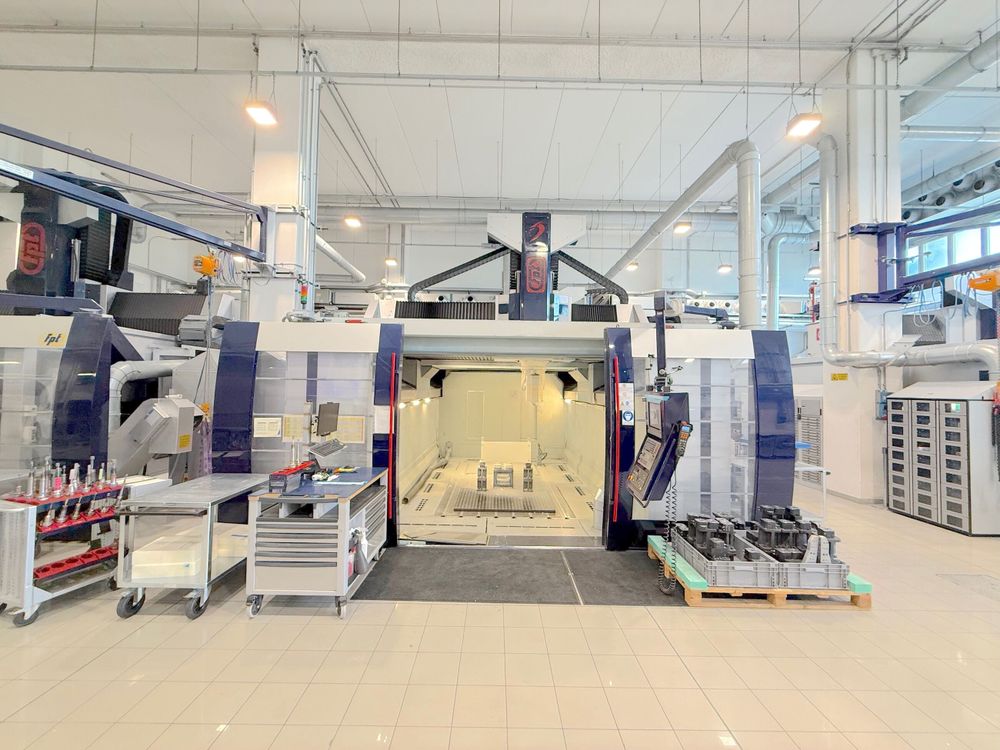

FPT DINOMAX 3 Axis

X-Axis Travel: 4000 mm
Y-Axis Travel: 1100 mm
Z-Axis Travel: 2200 mm
Rapid Traverse X: 50 m/min
Rapid Traverse Y: 50 m/min
Rapid Traverse Z: 50 m/min
Heidenhain TNC530i SP CNC Control
Column Distance: 3200 mm
Spindle Nose to Table Distance: 1926 mm
Spindle Taper: HSK63
Spindle Speed: 22,000 RPM
Spindle Power: 33 kW
Maximum Torque: 128 Nm
A-Axis Resolution: 0.001°
C-Axis Resolution: 0.001°
Tool Magazine Capacity: 60 Positions
Maximum Tool Diameter: 90 mm
Maximum Tool Length: 330 mm
Maximum Tool Weight: 10 kg
Universal 5-Axis Head
Continuous 5-Axis Machining
Direct Drive Rotary Axes
Linear Motor X-Axis
Ball Screw Y-Axis
Ball Screw Z-Axis
Rigid Tapping
Laser Tool Measurement System
Tool Breakage Detection Software
Tool Length Measurement
Tool Radius Measurement
Workpiece Probe
Workpiece Alignment Probe
Dynamic RTCP
AUTOCAL Automatic Calibration Software
Spindle Balance Control
Electronic Handwheel with Display
Ethernet Communication Interface
Dust Extraction Preparation
Scale Pressurization System
Work Area Lighting
Video Monitoring System
Machine Weight: 60,000 kg
Machine Dimensions: 7500 x 6475 x 4980 mm
