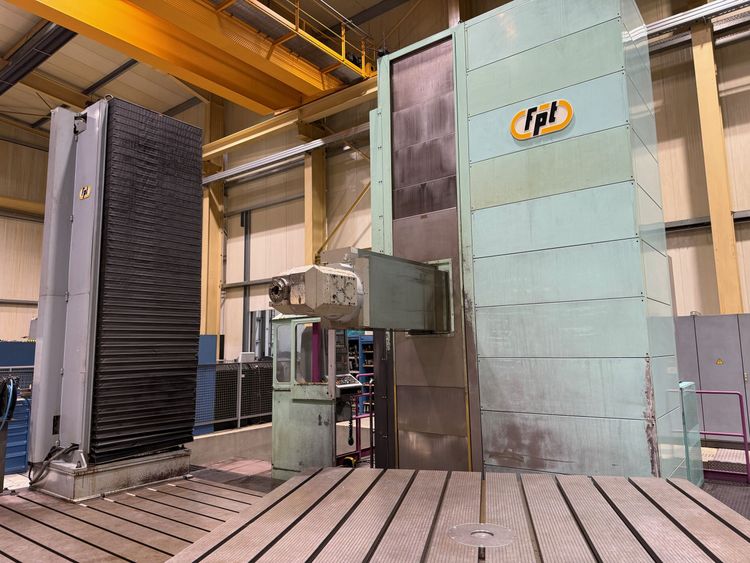

FPT M-ARX M80 3,000 Rpm

8008x3000x1500 mm
X Axis travel: 8,000 mm
Y Axis travel: 3,000 mm
Z Axis travel: 1,500 mm
Axis support: hydrostatic
CNC control: Heidenhain TNC430
Spindle power: 46 kW
Spindle speed range: 0–3,000 Rpm
Spindle torque: 2,350 Nm
Spindle taper: ISO50
Rapid X: 15 m/min
Rapid Y: 15 m/min
Rapid Z: 15 m/min
Pickup tool changer positions: 4
Head type: TUPC
Spindle taper: ISO50
A axis: 360,000x0.001°
C axis: 360,000x0.001°
Max torque: 2,350 Nm
Max speed: 3,000 Rpm
Max power: 46 kW
Coolant: internal 20 Bar
Head type: TAM
Spindle taper: ISO50
A axis: 360x1°
C axis: 360x1°
Max torque: 2,350 Nm
Max speed: 3,000 Rpm
Max power: 46 kW
Coolant: internal 20 Bar
Head type: SELS
Spindle taper: ISO50
Max torque: 2,350 Nm
Max speed: 3,000 Rpm
Max power: 46 kW
Coolant: internal 20 Bar
Head note: ø150x700 mm
Machine dimensions: 15,000x7,900x5,600 mm
Accessories: 4-position pickup, TUPC head, TAM orthogonal ISO50 head, 700 mm ø150 spindle extension, high pressure, hydrostatic
High pressure: 20 Bar
Filtration system: paper filter
Chip conveyor: yes
