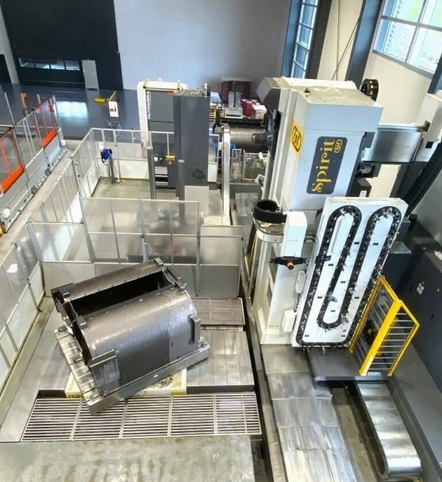

FPT SPIRIT 140 Year: 2014 4.000 rpm

Travel X axis 10.000 mm
Travel Y axis 1.500 mm
Travel Z axis 4.000 mm
Output 62.5 kW
Turning speed range 262-4.000 rpm
Torque 2.280 Nm
Size of table plate 2x (2.500 x 3.000) mm
Longitudinal travel 2.000 mm
Max. load 30.000 kg
Resolution 0.0005°
Resolution 1.8 sec
Table turning speeds 1.5 rpm
Control Siemens 840 Dsl
Numbers of positions in the tool changer 80
Tool taper ISO 50
Max. feed 25.000 mm/min
Size of T-slots (DIN 650) 28 mm
T-slot distance 225 mm
Hydrostatic guideways
Cooling system
Handwheel with radio transmission HBG 800-DP
ITC 40 bar
Tool changer 80 pcs. ISO50
Magazine for changing the milling heads with 3 places
Infinitely positionable universal head
Horizontal spindle extension long version
Chip conveyor
Laser probe with software for tool measurement and breakage control
Radio measuring probe M&H
Pendulum processing with partition
Two hydrostatic rotary boring tables TRT30
Working hours approx. 9.900 h
