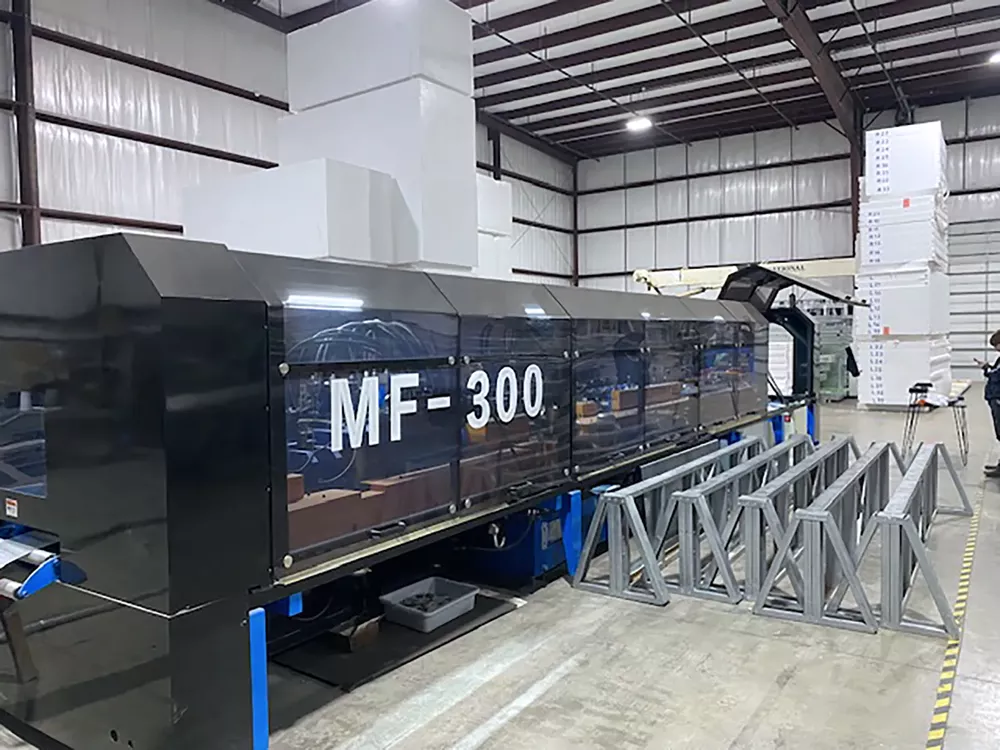

Frametec MF300

Machine weight: 45981.81 lbs
Machine dimensions: 404.05" x 166.02" x 77.16"
Profile width range: 2.5″ to 12″
Flange size: 1.25″ – 2.5″
Lip size: 0.78″
Material thickness: 0.1″ (adjustable)
Production speed: 1.37″/min
Material type: Q235, G550 hot rolled or galvanized strip
Voltage: 380 V
Frequency: 50 Hz
Electrical phase: 3
Power supply: 22 KVA
Power: 19.03 hp

Equipped With:
Hydraulic decoiler
Feeding and leveling device
Hydraulic punching
Rolling forming system
Hydraulic cutting
Safety cover guard
Industry computer control panel
Product support frame
PLC control system
