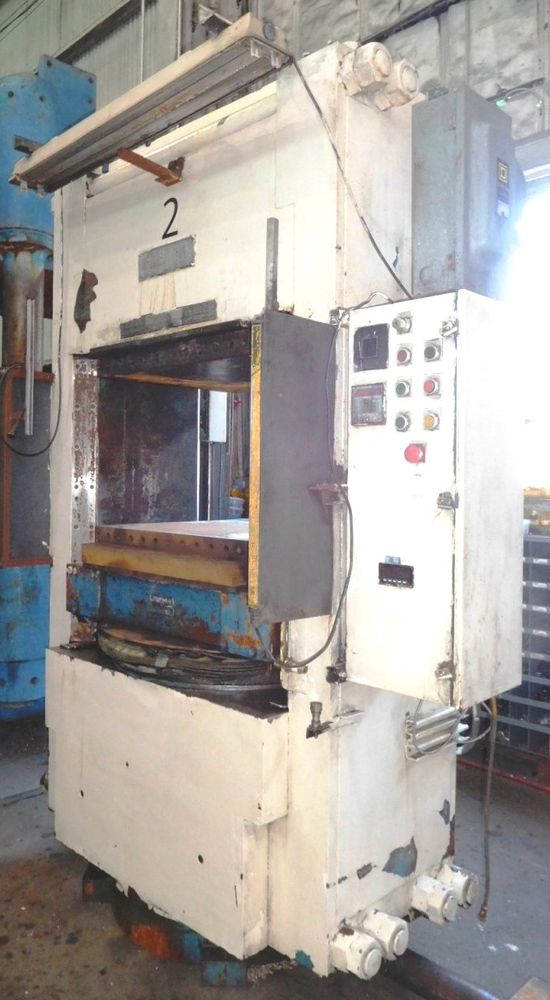

French Oil 36″x24″ Presses

565 Ton
Very heavy-duty construction
8 ½” thick slab (solid steel) sides
24″ Ø ram
16”-18″ stroke
30” approximate daylight without heating platens
43”-44″ approx. working height without bottom heating platen & insulation
37 ½” distance l-r between sides
36 ½” x 24” x 7” solid steel bolster guided on all four corners
30”x24” top & bottom electric platens & insulation presently installed
(20 ½” daylight between platens)
Two push-down cylinders mounted on head removed for shipping (NOT SHOWN)
All three presses are complete with hydraulic units and electrical/control panels
Overall dimensions: 55″ l-r X 25″ f-b X 93 ½” H (bare press)
