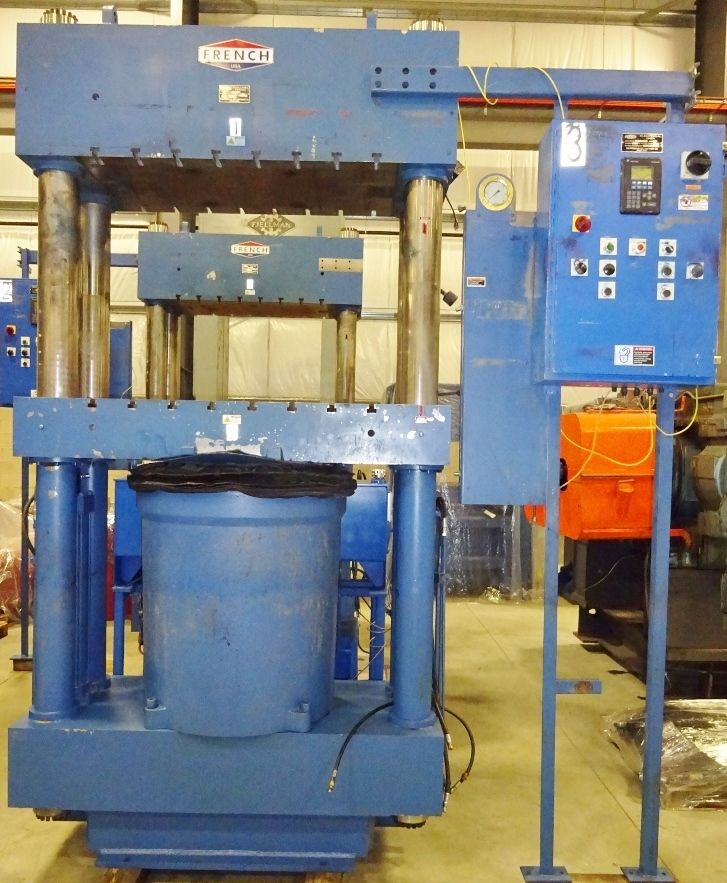

French Oil 50″ x 26″ Press

550 Ton
4-post
24″ dia. sit-on type ram/cylinder with ram dust/scratch protection
26″ stroke
36″ daylight w/o platens
51″ distance l-r between posts
71 1/4” working height to top of moving bolster
Fully guided solid steel bolster: 100” x 40” x 9” H
T-slotted bolster & head for hanging tooling
Side cylinders for faster opening/closing
200 gallon hydraulics, 2500 PSI, 25 HP motor, etc
60 IPM opening and closing speeds
Control Panel with Allen Bradley PLC and HMI programmed for manual & auto cycles
Manufactured by French Oil Machinery in 2006
Mint condition
Overall Dimensions: 65 7/8” L-R X 33” F-B X 130 ½” H
