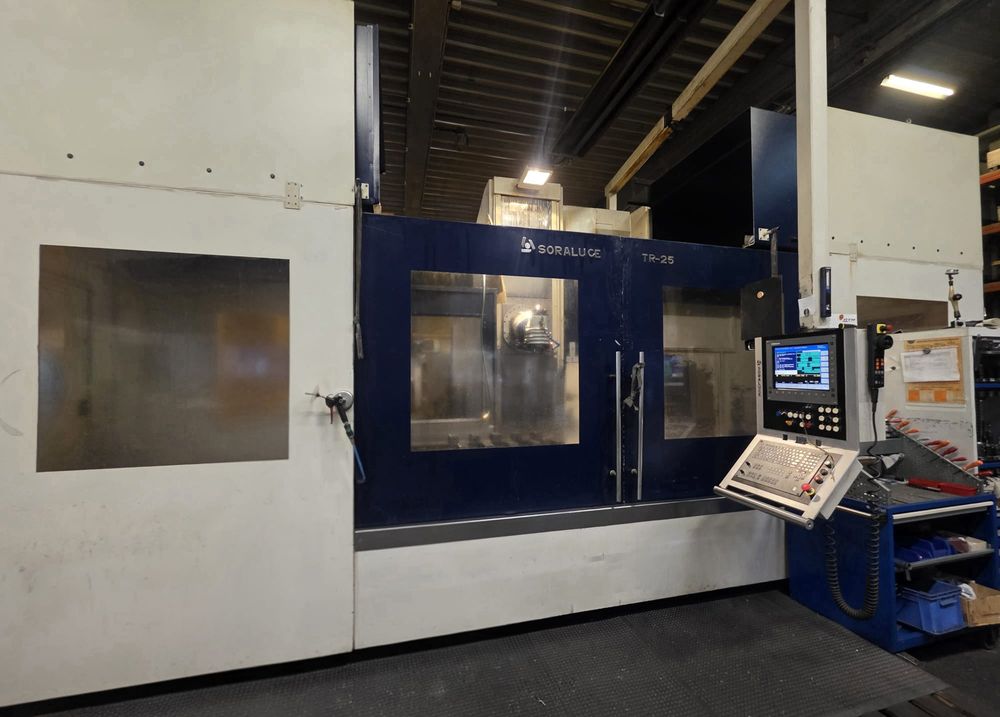

Fresadora, Soraluce TR-25-4 3000 rpm

X axis travel: 2500 mm
Y axis travel: 1600 mm
Z axis travel: 1200 mm
Rapid traverse: 25 m/min
NC rotary table (4th axis): YRT F 1000/1250
Maximum table load: 3500 kg
CNC control: Heidenhain iTNC 530
Electronic handwheel
Cooling through the spindle
Coolant device with paper band filter
Spindle speed: 20–3000 rpm
Spindle motor power: 32 kW
Spindle taper: ISO 50
Maximum spindle torque: 700 Nm
Feed range: 2–10 m/min
Work table length: 2860 mm
Work table width: 1200 mm
Table top thickness: 125 mm
Overall height: 265 mm
Partial accuracy: ±2.5
Machine weight: 25 t

Features / Options / Equipment:
NC rotary table (4th axis)
Electronic handwheel
Automatic universal milling head ±2.5°
Through-spindle coolant
Coolant device with paper band filter
Chip conveyor
Automatic cycle operation
Machine running hours: 34,320 h
Control on hours: 23,218 h
Automatic cycle hours: 11,987 h
