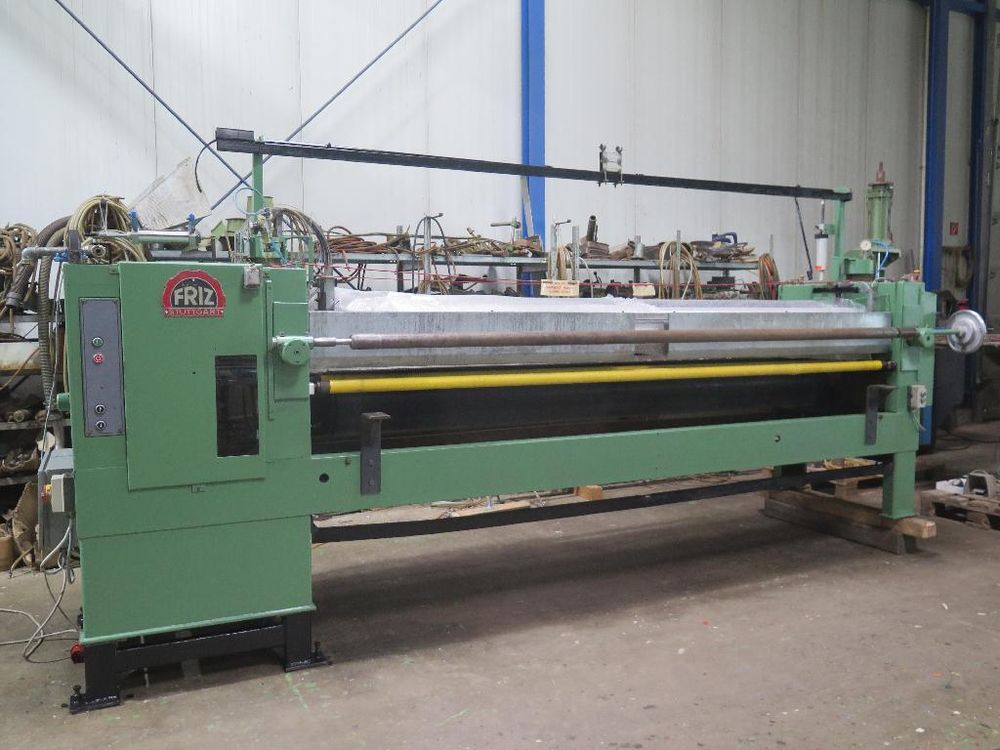

Friz LAS 2 Glue Spreader
EUROPE (Western and Northern)
4-Roller Glue Spreader
Working Width 2800 mm
Roller Length 2850 mm
2 Rubberized, Grooved Application Rollers, Diameter Approx. 280 mm
2 Chrome-Plated Metering Rollers, Diameter Approx. 220 mm
Electric Height Adjustment
Maximum Clearance Height 100 mm
Maximum Metering Roller Spacing 80 mm
Feed Speed 28 m/min.
Drive motor 3.0 kW
Lift motor 0.25 kW
Pump motor 0.8 kW
Emergency stop pull cord on both sides
Dimensions
4700 mm x 1200 mm x H 2200 mm
The machine is currently being inspected, cleaned, and overhauled
With driven disc roller conveyor
Disc roller support width 2700 mm
Dimensions 2900 mm x 2100 mm
With FRIZ cleaning brush machine
Type BUE 3
Working width 2700 mm
With driven brushes above and below
