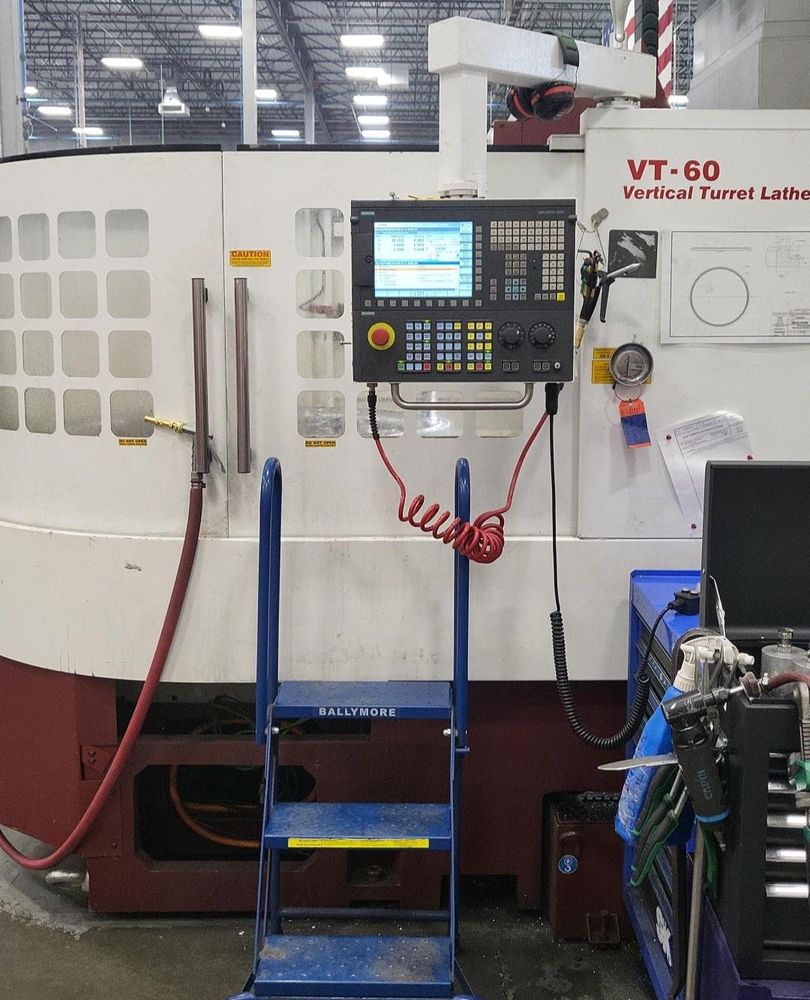

Fryer FRYER SIEMENS 828-HS CNC Control VT-60 2 Axis

X-Axis Column Travel: 34"
Z-Axis Travel: 32"
Rapid Traverse Rate: 750 IPM
SIEMENS 828-HS CNC Control
Live Tooling
Tool Presetter
Remote Jog Handle
Chuck Size: 50"
Cutting Diameter Range: 0 - 60"
Max Swing Diameter: 60"
Spindle Bore: 2.625"
Spindle Speed: 10 - 500 RPM
Spindle Motor: 75 HP
Spindle Torque: 2,700 ft-lbs
Milling Spindle Speed: 10 - 4,000 RPM
Milling Spindle Power: 10 HP
Turret Positions: 8
Tooling Size: BMT-65
50" Manual 4-Jaw Chuck
Turret to Spindle Nose: 8" - 40"
X-Axis Turret Face to Spindle Center: -3" to 31"
Max Part Weight: 10,000 lbs
Thrust (X & Z Axes): 6,504 lbs
Machine Dimensions: 162" × 79" × 115"
Machine Weight: 32,000 lbs
Chip Conveyor
