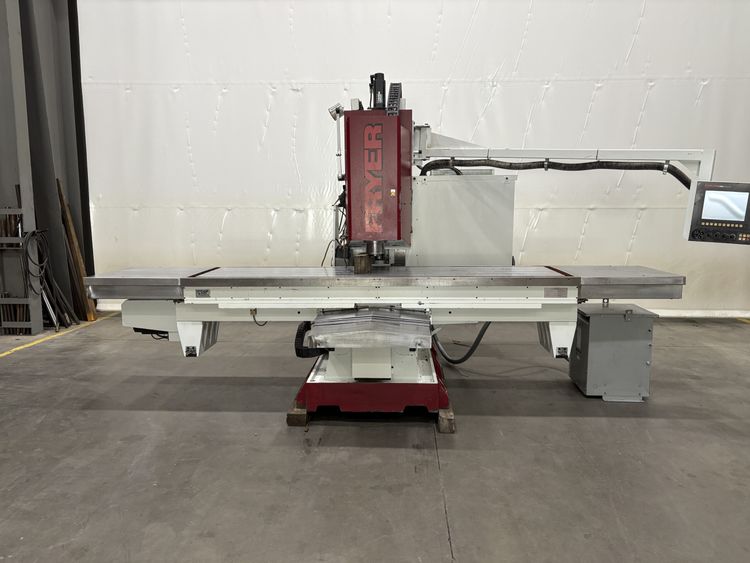

Fryer VB-100 CNC VERTICAL MACHINING CENTER 3 Axis

X Axis Travel: 100 in
Y Axis Travel: 35 in
Z Axis Travel: 26 in
Table Size: 30 × 112 in
Rapid Traverse Feedrate: 1000 ipm
Spindle Speed Max: 8000 rpm
Spindle Motor Power: 20 hp
Spindle Taper: 40 taper
Tool Tapping Speed: 2500 rpm
Tool Orientation: Electronic spindle orientation
Tool Capacity: Not specified
Machine Weight: Not specified
Box way construction
Double nut ballscrews
Digital high torque vector spindle drive
Digital AC brushless servo drives
Laser calibrated axes
Ballbar verified accuracy
Automatic lubrication system
Turcite B sliding way surfaces
Hardened and ground table
Anilam-Fryer Touch 6000 control system
12 inch color touchscreen display
10 GB program storage memory
DSP processor 1300 blocks/sec
Handwheel control panel
DXF file input supported
Macro programming support
3D graphics visualization
Halogen work lamp
Rigid tapping capability
±0.002 in positional accuracy over travel
Machine equipped with chip handling and lubrication monitoring system
